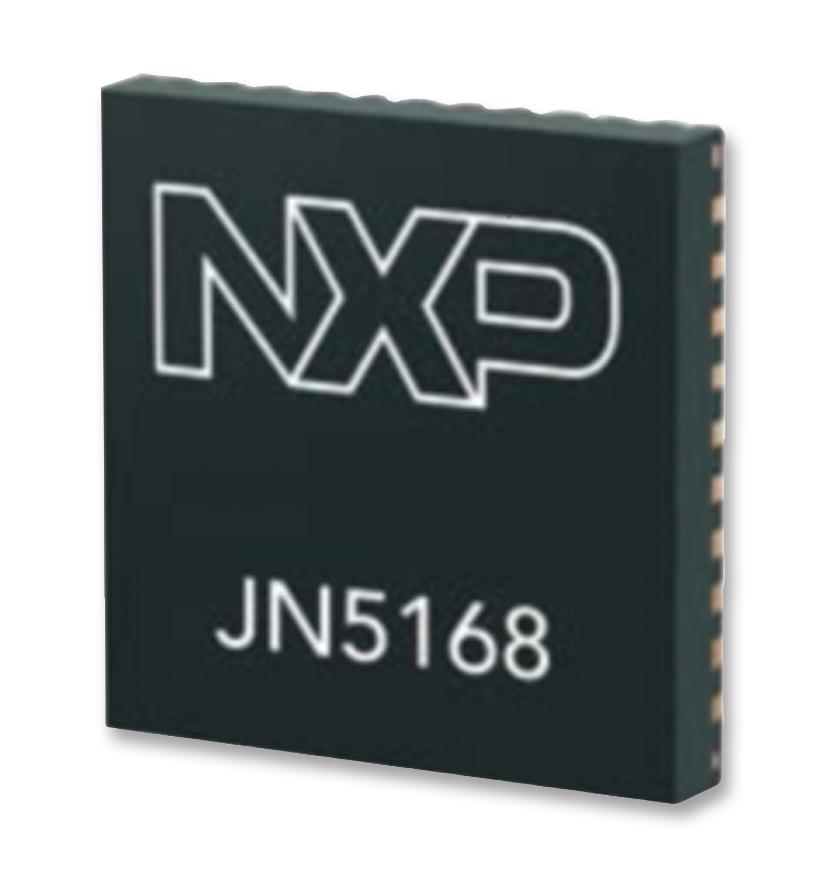

JN5168/001,515
ActiveNXP USA Inc.
ZIGBEE AND IEEE802.15.4 WIRELESS MICROCONTROLLER WITH 256 KB FLASH, 32 KB RAM
JN5168/001,515
ActiveNXP USA Inc.
ZIGBEE AND IEEE802.15.4 WIRELESS MICROCONTROLLER WITH 256 KB FLASH, 32 KB RAM
Description
General part information
JN5168/001,515
Single chip device to runstack and application
Very low current solution forlong battery life – over 10 years
Supports multiple networkstacks
Technical Specifications
Parameters and characteristics for this part
| Specification | JN5168/001,515 |
|---|---|
| Current - Receiving | 17 mA |
| Current - Transmitting | 15 mA |
| Data Rate (Max) | 1000 kBaud |
| Frequency (Max) | 2.485 GHz |
| Frequency (Min) | 2.4 GHz |
| Memory Size (Flash) | 256 KB |
| Memory Type | EEPROM, RAM, Flash |
| Modulation | O-QPSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 40-VFQFN Exposed Pad |
| Package Length | 6 mm |
| Package Name | 40-HVQFN |
| Package Width | 6 mm |
| Power - Output | 2.5 dBm |
| Protocol | Zigbee® |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -96 dBm |
| Serial Interfaces | I2C, SPI, JTAG, UART |
| Type | TxRx + MCU |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2 V |
