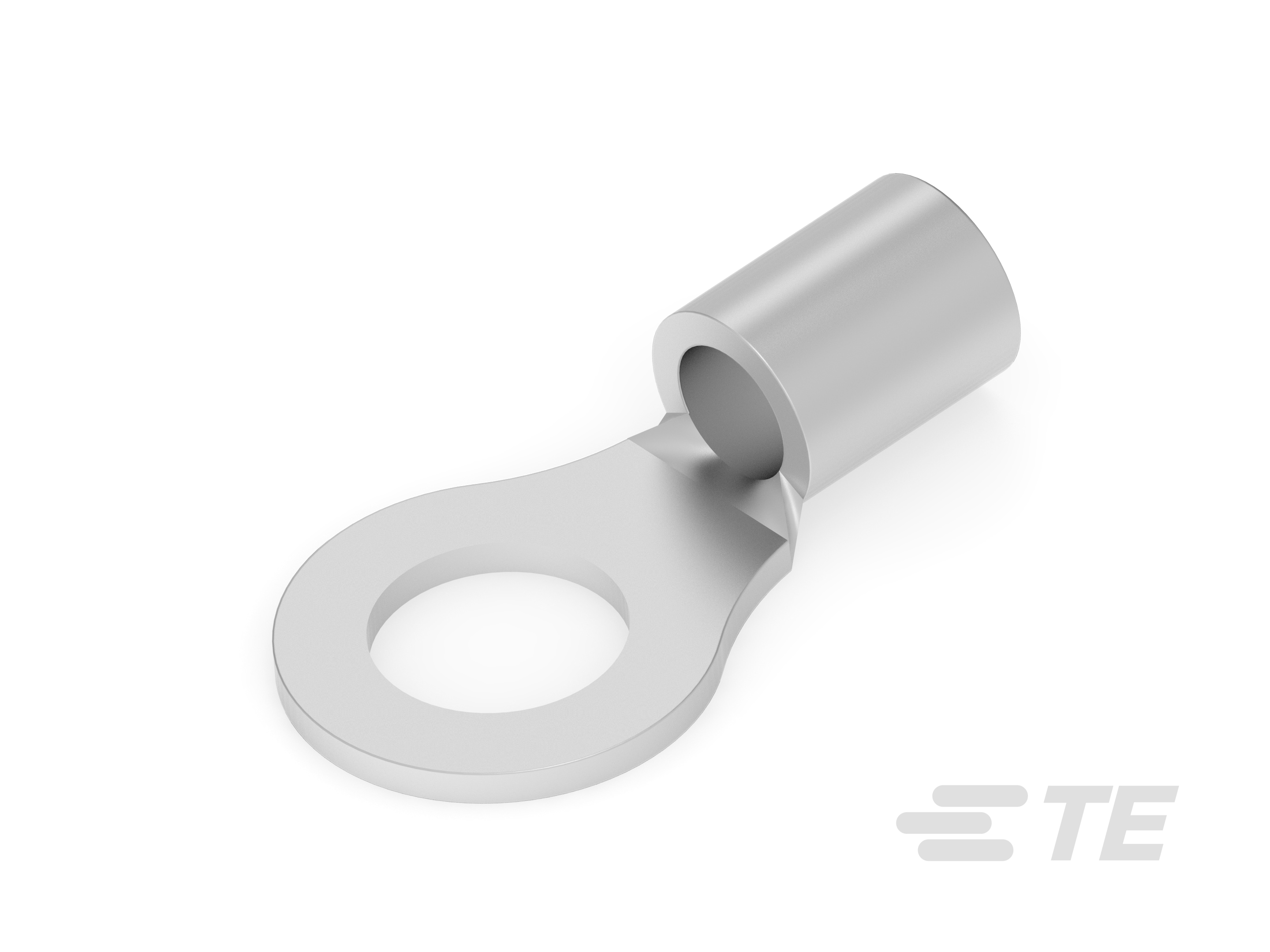

TERMINAL, SOLIS R 8 5/16-2-31808-2

2-31808-2

Active
TE Connectivity AMP Connectors

CONN RING CIRC 8AWG #5/16 CRIMP

Find alt
TERMINAL, SOLIS R 8 5/16-2-31808-2

2-31808-2

Active
TE Connectivity AMP Connectors

CONN RING CIRC 8AWG #5/16 CRIMP

Find alt

Description

General part information

2-31808-2

Closed Ring Tongue Terminal, 8 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated

Technical Specifications

Parameters and characteristics for this part

Specification2-31808-2
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination, Brazed Seam
InsulationNon-Insulated
Length - Overall1.074 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size0.3125 in
Stud/Tab Size16 Stud, 5 Stud
Stud/Tab Size (Type)Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.048 in
Width - Outer Edges0.562 in
Wire Gauge8 AWG
