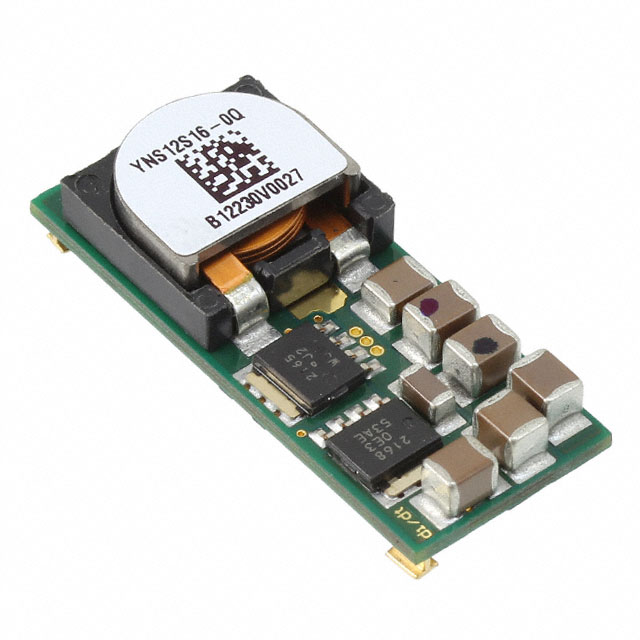

YNS12S16-0
ObsoleteBel Fuse Inc.
DC DC CONVERTER 0.7525-5.5V 88W
YNS12S16-0
ObsoleteBel Fuse Inc.
DC DC CONVERTER 0.7525-5.5V 88W
Description
General part information
YNS12S16-0
Non-Isolated PoL Module DC DC Converter 1 Output 0.7525 ~ 5.5V 16A 9.6V - 14V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | YNS12S16-0 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 16 A |
| Efficiency | 94.8 % |
| Features | OCP, Remote On/Off, OTP, UVLO |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 88 W |
| Size / Dimension Height | 0.32 in |
| Size / Dimension Length | 1.3 in |
| Size / Dimension Width | 0.53 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 14 V |
| Voltage - Input (Min) | 9.6 V |
| Voltage - Output 1 (Max) | 5.5 V |
| Voltage - Output 1 (Min) | 0.7525 V |
