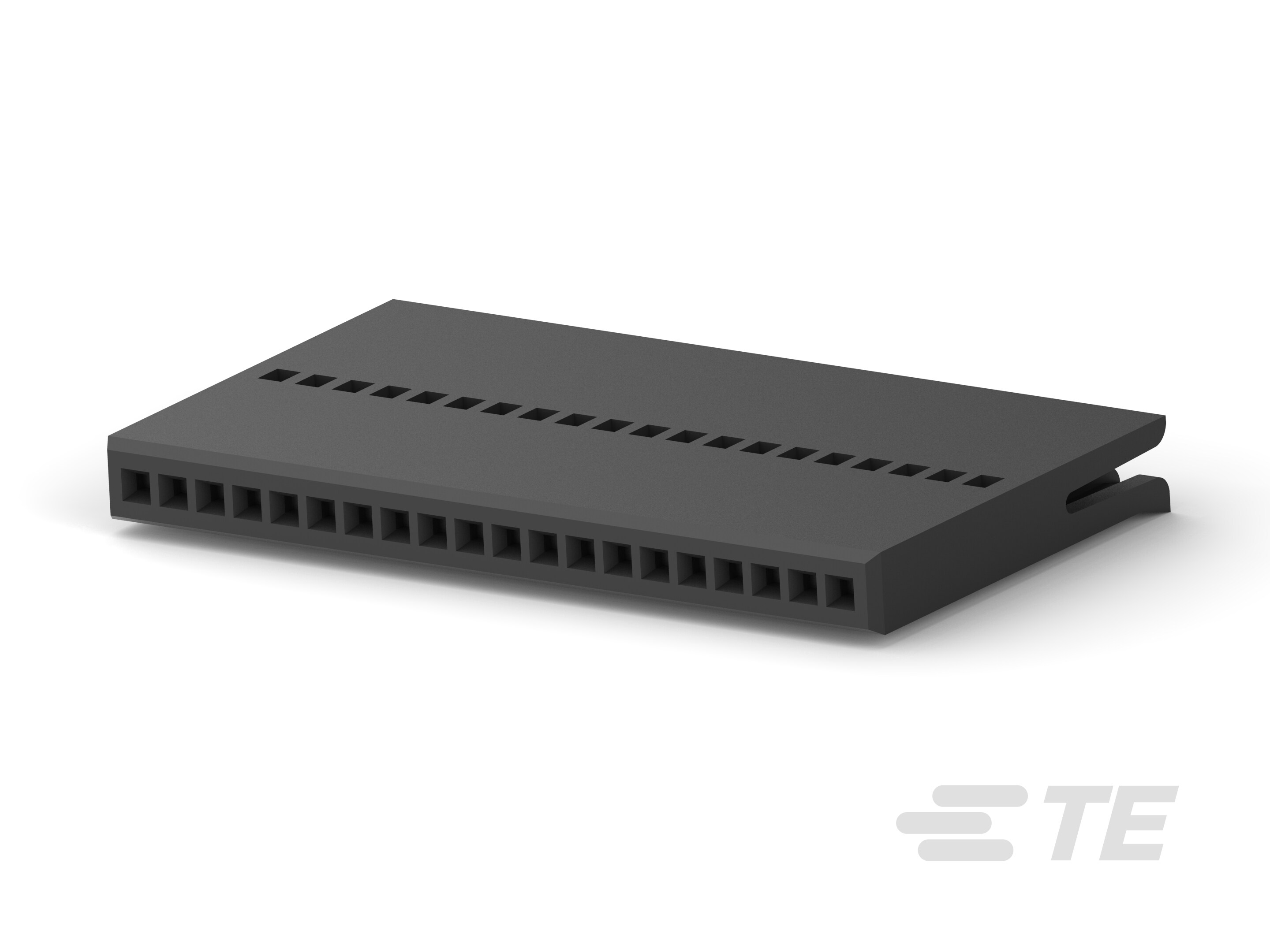

020 HOUSING FFC RCPT 050CL SR-1-487544-7

1-487544-7

Active
TE Connectivity AMP Connectors

020 HOUSING FFC RCPT 050CL SR ROHS COMPLIANT: YES

Find alt
020 HOUSING FFC RCPT 050CL SR-1-487544-7

1-487544-7

Active
TE Connectivity AMP Connectors

020 HOUSING FFC RCPT 050CL SR ROHS COMPLIANT: YES

Find alt

Description

General part information

1-487544-7

Housing, Wire-to-Board, 20 Position, 1.27 mm [.05 in] Centerline, 1 Row, Socket, Package, Normal, Straight, Black, FFC Connectors

Technical Specifications

Parameters and characteristics for this part

Specification1-487544-7
Connector TypeHousing for Female Contacts
FFC, FCB Thickness (Max)0.08 mm
FFC, FCB Thickness (Min)0.05 mm
Flat Flex TypeFFC
Housing MaterialPolyester
Locking FeatureDetent Lock
Material Flammability RatingUL94 V-0
Number of Positions20
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Pitch0.05 in
Voltage Rating100 VAC
