2821992-2
ActiveTE Connectivity AMP Connectors

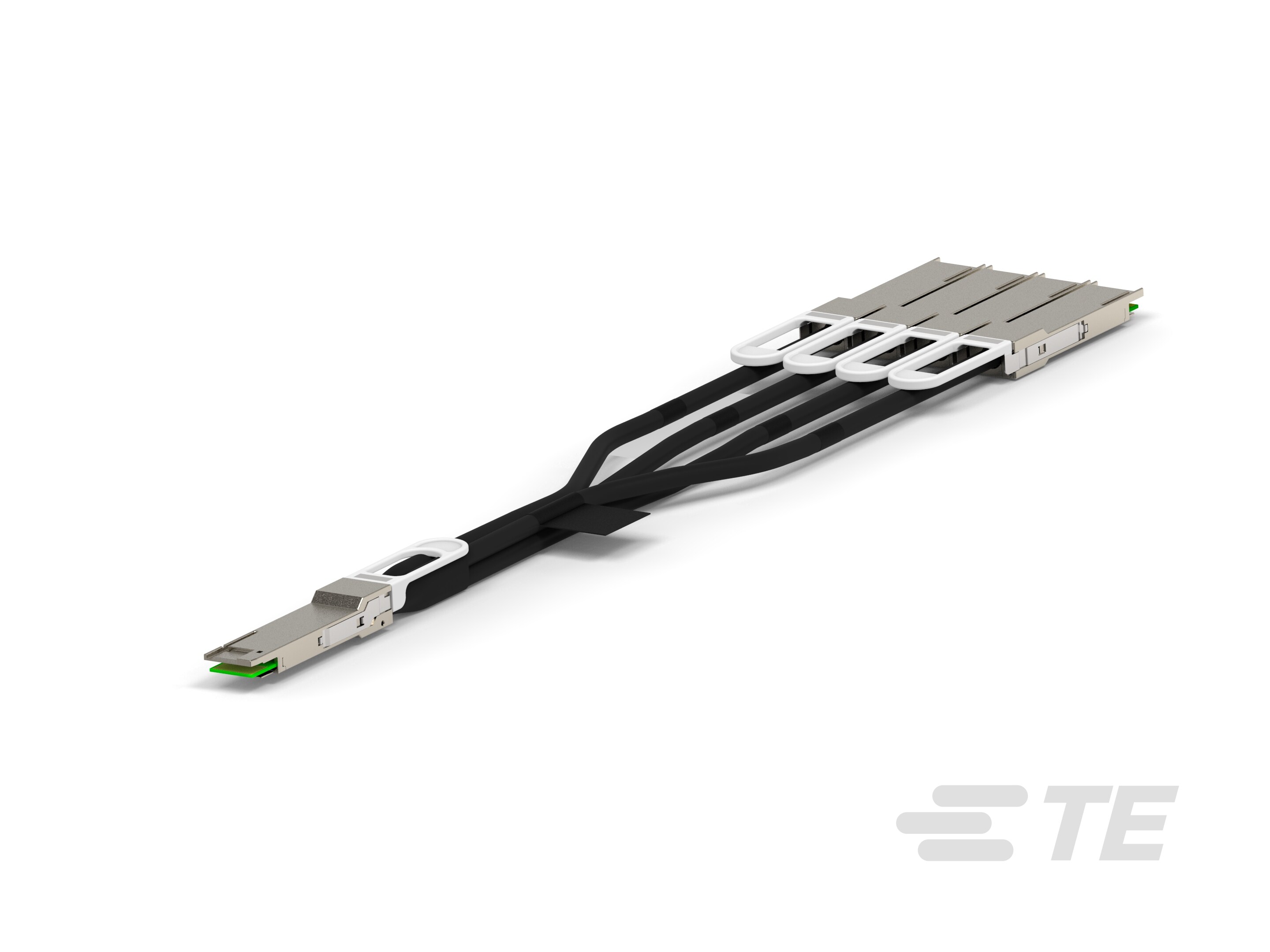

DD-4_QSFP56, 32AWG 4PR, 1.0M
2821992-2
ActiveTE Connectivity AMP Connectors
DD-4_QSFP56, 32AWG 4PR, 1.0M
Description
General part information
2821992-2
QSFP-DD to QSFP Cable Assembly, 32 Positions, 1 m [3.28 ft], 56 Gb/s, Black Cable, Shielded, 32 AWG, .2 mm² Wire, QSFP-DD Plug End A, QSFP Plug End B
Technical Specifications
Parameters and characteristics for this part
| Specification | 2821992-2 |
|---|---|
| Cable Connectors | QSFP56, QSFP-DD |
| Cable Connectors Count | 4 pcs |
| Cable Type | Round |
| Color | Black |
| Connector Type | Plug to Plug |
| Fastening Type | Latch Lock, Push-Pull |
| Gender | Male to Male |
| Length | 3.28 ft |
| Number of Positions | 32 |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
QSFP-DD Connectors and Cable Assemblies Portfolio Overview (English)
QSFP-DD Connectors and Cable Assemblies Portfolio Overview (Chinese)
QSFP-DD 56-Gbps Copper Module Direct Attach Cable Assembly
Datasheet
ENG_CD_2821992_B.pdf
Quad Small Form Factor Double Density 56Gbps Copper Module Direct Attach Cable Assembly
2821992-2 | Datasheet
