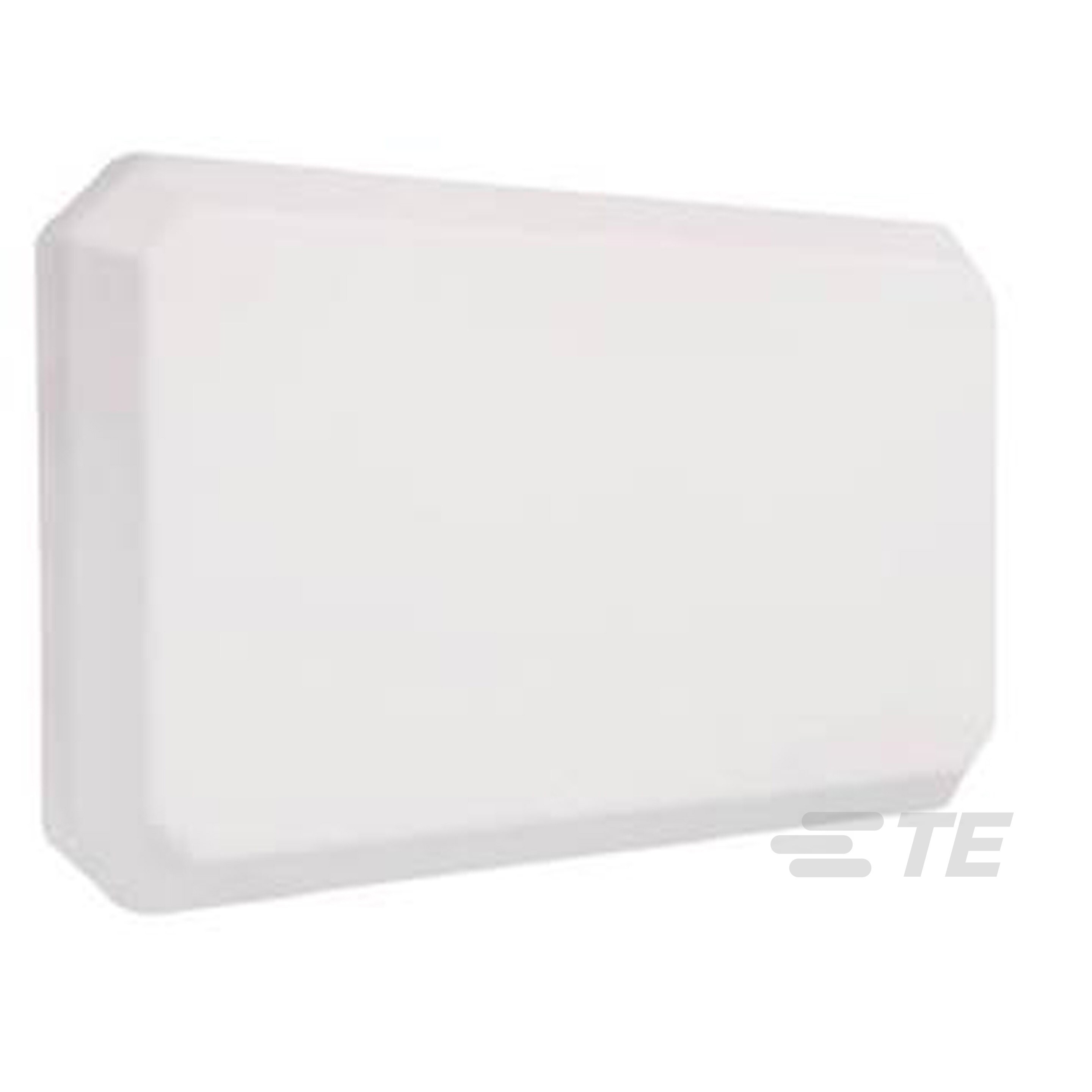

PDM24519-FNF

PDM24519-FNF

Active
TE Connectivity AMP Connectors

PANEL,ARTMNT,FIXED,NF 2451,9,N

Find alt
PDM24519-FNF

PDM24519-FNF

Active
TE Connectivity AMP Connectors

PANEL,ARTMNT,FIXED,NF 2451,9,N

Find alt

Description

General part information

PDM24519-FNF

Panel Antenna, Dual Band, Wi-Fi, External Mount, Pole/Mast/Bracket Mount, N-type, Directional, Multiple Ports, > 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationPDM24519-FNF
Antenna TypePanel
ApplicationsWLAN
Frequency (Band)5.525 GHz
Frequency (Center)2.45 GHz
Frequency GroupSHF, UHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (SHF)4 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Band 1) Maximum2.5 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.9 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Height (Max)1 in
Ingress ProtectionIP67
Mounting TypeSurface Mount
Number of Bands2
Power - Max10 VA
RF Family/StandardWiFi
TerminationN Type Female
VSWR2
