Description
General part information

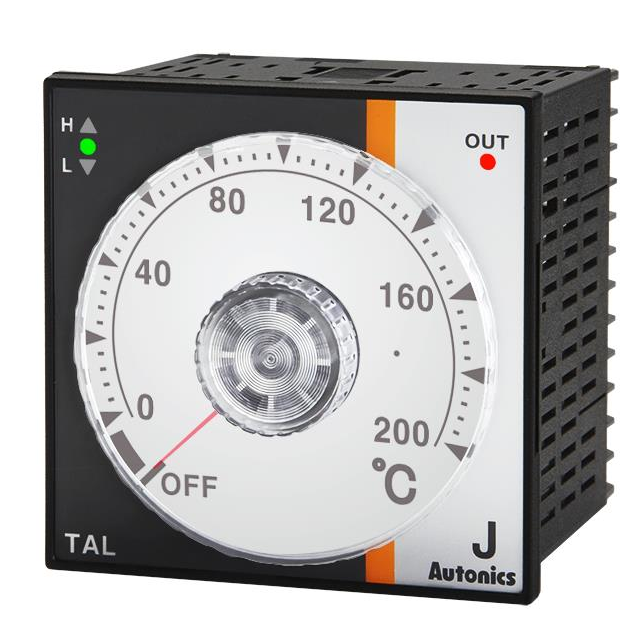

TAL-B4RJ2C
Temperature Controller (Type J) 100 ~ 240VAC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TAL-B4RJ2C |
|---|---|
| Control Method | Off, Proportional (PID), On |
| Display Type | Analog |
| Input Temperature (Max) | 200 °C |
| Input Temperature (Min) | 0 °C |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | Relay |
| Panel Cutout Length | 92 mm |
| Panel Cutout Shape | Square |
| Panel Cutout Width | 92 mm |
| Type | Temperature Controller (Type J) |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
