STT0637
ActiveFairview Microwave
TERM PLUG TNC 1.2 VSWR
STT0637
ActiveFairview Microwave
TERM PLUG TNC 1.2 VSWR
Description
General part information

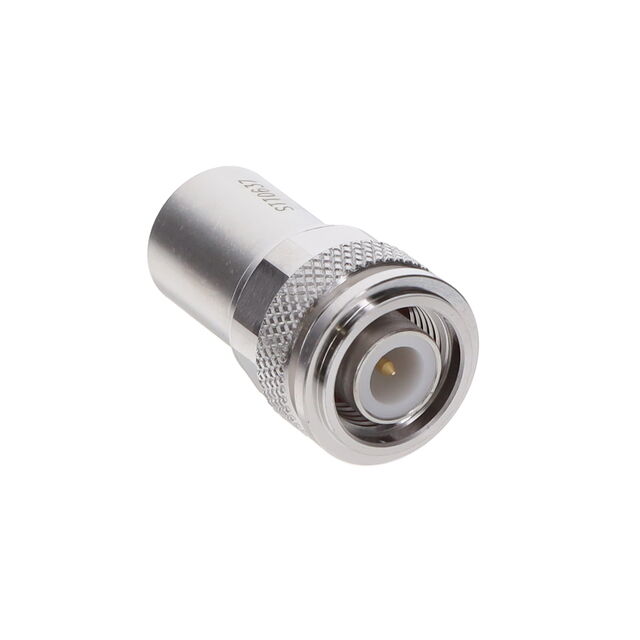

STT0637
Terminator Coax Connector Plug, Male Pin TNC 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | STT0637 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Finish | Gold |
| Contact Material | Brass |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Mounting Type | Cap, Free Hanging |
