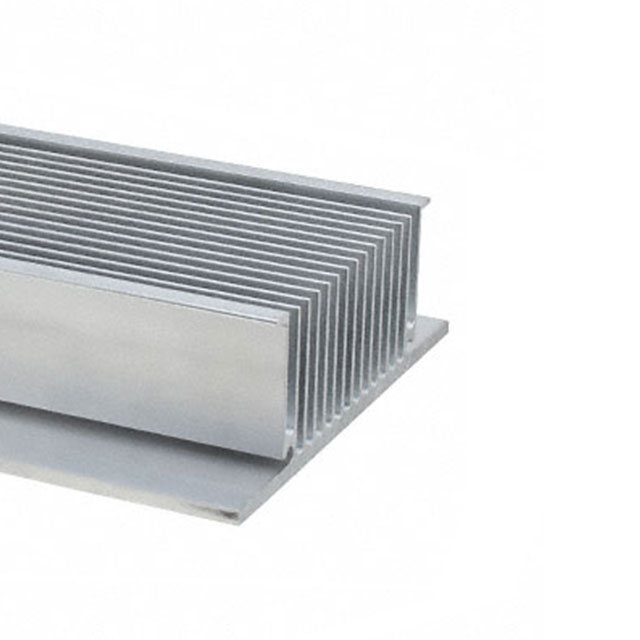

512-9U

512-9U

Active
Wakefield Thermal Solutions

HIGH FIN DENSITY HEAT SINKS FOR POWER MODULES, IGBTS & RELAYS ROHS COMPLIANT: YES

Find alt
512-9U

512-9U

Active
Wakefield Thermal Solutions

HIGH FIN DENSITY HEAT SINKS FOR POWER MODULES, IGBTS & RELAYS ROHS COMPLIANT: YES

Find alt

Description

General part information

512-9U

Heat Sink Power Modules Aluminum Top Mount, Extrusion

Technical Specifications

Parameters and characteristics for this part

Specification512-9U
Attachment MethodAdhesive
Fin Height2.41 in
Length228.6 mm
MaterialAluminum
Package CooledPower Modules
ShapeFins, Rectangular
Thermal Resistance0.56 °C/W
TypeTop Mount, Extrusion
Width7.2 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Extruded Heat Sinks Catalog
Datasheet
