DASLTE500NF
ObsoletePulse Electronics

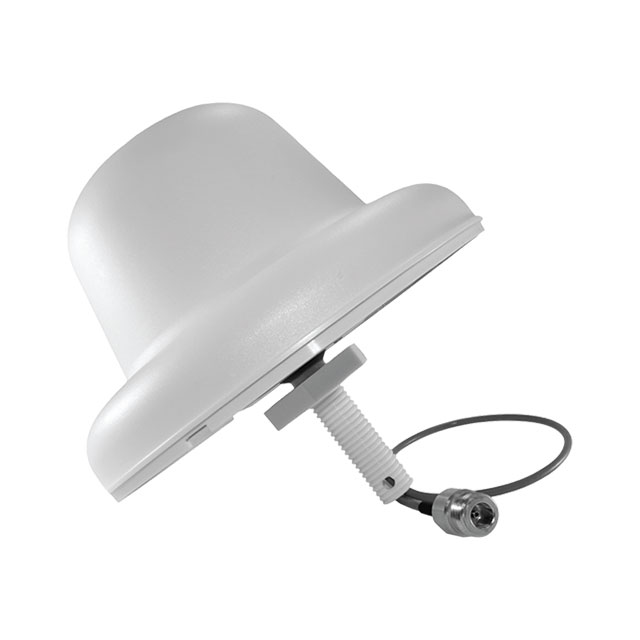

RF ANT 829MHZ/2.2GHZ DOME N FEM
DASLTE500NF
ObsoletePulse Electronics
RF ANT 829MHZ/2.2GHZ DOME N FEM
Description
General part information
DASLTE500NF
829MHz, 2.2GHz, 5.4GHz Dome RF Antenna 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz 8dBi N Type Female Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | DASLTE500NF |
|---|---|
| Antenna Type | Dome |
| Frequency (Center/Band) | 2.2GHz, 829MHz, 5.4GHz |
| Frequency (Center/Band) - 1 | 829 MHz |
| Frequency (Center/Band) - 2 | 2.2 GHz |
| Frequency (Center/Band) - 3 | 5.4 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 2) Maximum | 2.7 GHz |
| Frequency Range (Band 2) Minimum | 1.7 GHz |
| Frequency Range (Band 3) Maximum | 5.9 GHz |
| Frequency Range (Band 3) Minimum | 4.9 GHz |
| Gain | 8 dBi |
| Height (Max) | 4.606 in |
| Mounting Type | Panel Mount |
| Number of Bands | 3 |
| Power - Max | 50 VA |
| Termination | N Type Female |
| VSWR | 1.8 |
