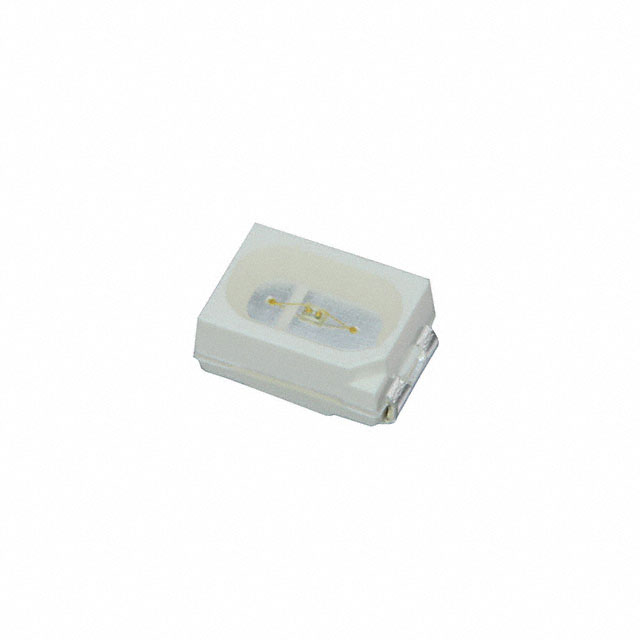

CLM3A-BKW-CTAUA453
UnknownCree LED
LED BLUE CLEAR 2PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLM3A-BKW-CTAUA453
UnknownCree LED
LED BLUE CLEAR 2PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CLM3A-BKW-CTAUA453 | CLM3A Series |
|---|---|---|
| Color | Blue | Cool, White, Warm, Blue, Green |
| Configuration | Standard | Standard |
| Current - Test | 20 mA | 20 mA |
| Height (Max) [Max] [z] | 1.4 mm | 1.4 mm |
| Lens Color | Colorless | Yellow, Colorless |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Transparency | Clear | Diffused, Clear |
| Millicandela Rating | 420 mcd | 420 - 1680 mcd |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Size / Dimension [x] | 2.7 mm | 2.7 mm |
| Size / Dimension [y] | 2 mm | 2 mm |
| Supplier Device Package | 2-PLCC | 2-PLCC |
| Viewing Angle | - | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V | 3.2 - 3.4 V |
| Wavelength - Dominant | 470 nm | 470 - 5500 K |
| Wavelength - Dominant | - | 527 nm |
CLM3A Series
LED WHITE DIFF 2PLCC SMD
| Part | Size / Dimension [y] | Size / Dimension [x] | Height (Max) [Max] [z] | Package / Case | Supplier Device Package | Mounting Type | Configuration | Lens Transparency | Voltage - Forward (Vf) (Typ) | Viewing Angle | Lens Color | Wavelength - Dominant | Lens Style | Millicandela Rating | Color | Current - Test | Wavelength - Dominant [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cree LED CLM3A-WKW-CWAXA123 | 2 mm | 2.7 mm | 1.4 mm | 2-SMD, J-Lead | 2-PLCC | Surface Mount | |||||||||||
Cree LED CLM3A-WKW-CWAXA153 | 2 mm | 2.7 mm | 1.4 mm | 2-SMD, J-Lead | 2-PLCC | Surface Mount | Standard | Diffused | 3.2 V | 120 ° | Yellow | 5500 K | Rectangle with Flat Top | 1680 mcd | Cool, White | 20 mA | |
Cree LED CLM3A-MKW-CWAXA233 | 2 mm | 2.7 mm | 1.4 mm | 2-SMD, J-Lead | 2-PLCC | Surface Mount | Standard | Diffused | 3.2 V | 120 ° | Yellow | 3200 K | Rectangle with Flat Top | 1680 mcd | Warm, White | 20 mA | |
Cree LED CLM3A-BKW-CTBUB453 | 2 mm | 2.7 mm | 1.4 mm | 2-SMD, J-Lead | 2-PLCC | Surface Mount | Standard | Clear | 3.4 V | Colorless | 470 nm | Rectangle with Flat Top | 532.5 mcd | Blue | 20 mA | ||
Cree LED CLM3A-WKW-CWAXA133 | 2 mm | 2.7 mm | 1.4 mm | 2-SMD, J-Lead | 2-PLCC | Surface Mount | |||||||||||
Cree LED CLM3A-WKW-CWAWBJQ3 | 2 mm | 2.7 mm | 1.4 mm | 2-SMD, J-Lead | 2-PLCC | Surface Mount | |||||||||||
Cree LED CLM3A-MKW-CVBXA233 | 2 mm | 2.7 mm | 1.4 mm | 2-SMD, J-Lead | 2-PLCC | Surface Mount | Standard | Diffused | 3.2 V | 120 ° | Yellow | 3200 K | Rectangle with Flat Top | 1570 mcd | Warm, White | 20 mA | |
Cree LED CLM3A-GKW-CVAWA793 | 2 mm | 2.7 mm | 1.4 mm | 2-SMD, J-Lead | 2-PLCC | Surface Mount | Standard | Clear | 3.4 V | Colorless | Rectangle with Flat Top | 1055 mcd | Green | 20 mA | 527 nm | ||
Cree LED CLM3A-BKW-CTAUA453 | 2 mm | 2.7 mm | 1.4 mm | 2-SMD, J-Lead | 2-PLCC | Surface Mount | Standard | Clear | 3.4 V | Colorless | 470 nm | Rectangle with Flat Top | 420 mcd | Blue | 20 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CLM3A Series
Blue 470nm LED Indication - Discrete 3.4V 2-SMD, J-Lead
