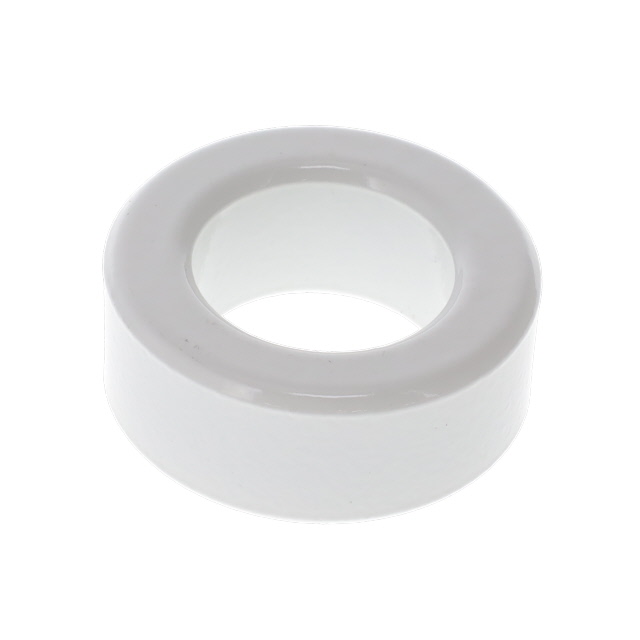

TX32/19/13-3E10-M
Epoxy Ferrite Core Toroid Type Length Width 1.281" (32.55mm) Diameter 0.528" (13.40mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | TX32/19/13-3E10-M |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 0.99 mm⁻¹ |
| Core Type | Toroid |
| Diameter | 1.281 in |
| Effective Area (Ae) | 76.5 mm² |
| Effective Length (le) | 76 mm |
| Effective Magnetic Volume (Ve) | 5820 mm³ |
| Effective Permeability (µe) | 10000 |
| Finish | Epoxy |
| Gap | Ungapped |
| Height | 0.528 in |
| Package Height | 13 mm |
| Package Length | 32 mm |
| Package Name | TX |
| Package Width | 19 mm |
| Tolerance | 30 % |
