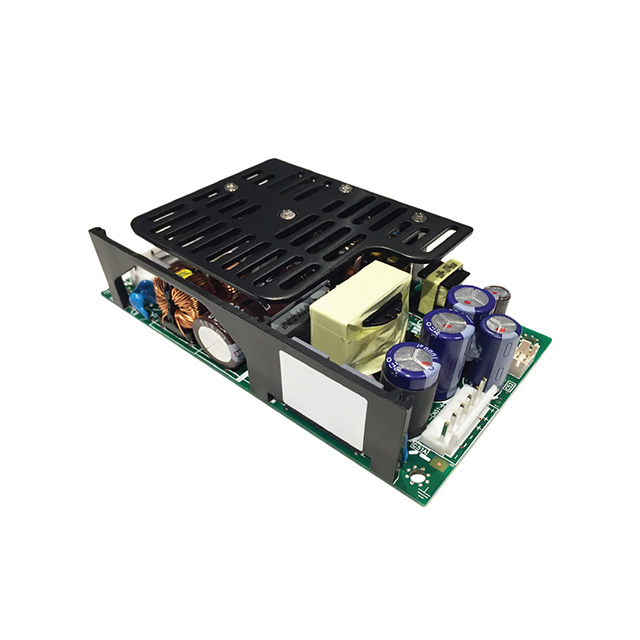

CUS200M-24/A
ActiveTDK-LAMBDA
POWER SUPPLY, AC-DC, 24V, 10.5A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CUS200M-24/A
ActiveTDK-LAMBDA
POWER SUPPLY, AC-DC, 24V, 10.5A ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CUS200M-24/A |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE |
| Current - Output 1 | 8.4 A |
| Efficiency | 94 % |
| Features | PFC, Universal Input, Adjustable Output, Standby Output, Remote On/Off |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 200 W, 250 W |
| Size / Dimension [x] | 5.5 in |
| Size / Dimension [x] | 139.7 mm |
| Size / Dimension [y] | 90 mm |
| Size / Dimension [y] | 3.54 in |
| Size / Dimension [z] | 43 mm |
| Size / Dimension [z] | 1.69 in |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CUS200M-24/A
Enclosed AC DC Converters 1 Output 24V 85 ~ 265 VAC Input
