Description
General part information

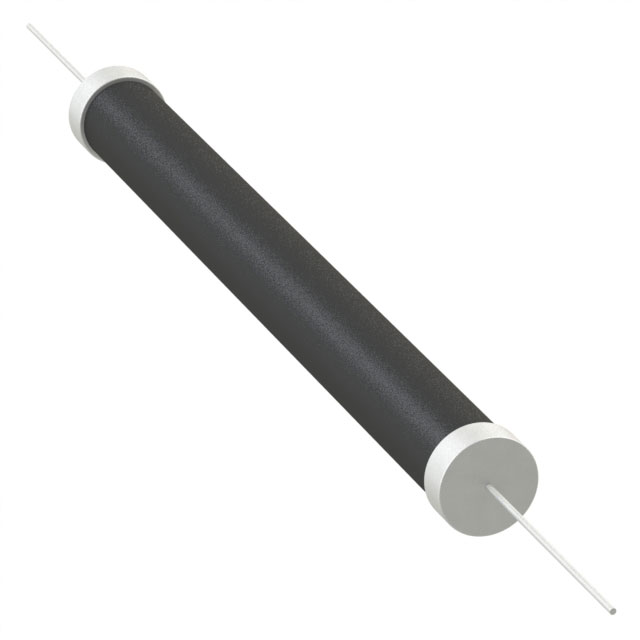

254AS471KDS
470 Ohms ±10% 11W Through Hole Resistor Axial Moisture Resistant, Non-Inductive, Pulse Withstanding Ceramic
Technical Specifications
Parameters and characteristics for this part
| Specification | 254AS471KDS |
|---|---|
| Composition | Ceramic |
| Features | Pulse Withstanding, Non-Inductive, Moisture Resistant |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 230 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 11 W |
| Resistance | 470 Ohm |
| Size / Dimension Diameter | 0.437 in |
| Size / Dimension Length | 4.126 in |
| Temperature Coefficient (Highest) | 0 ppm/°C |
| Temperature Coefficient (Lowest) | -800 ppm/°C |
| Tolerance | 10 % |
