219A-04FAF
ActiveATTEND Technology

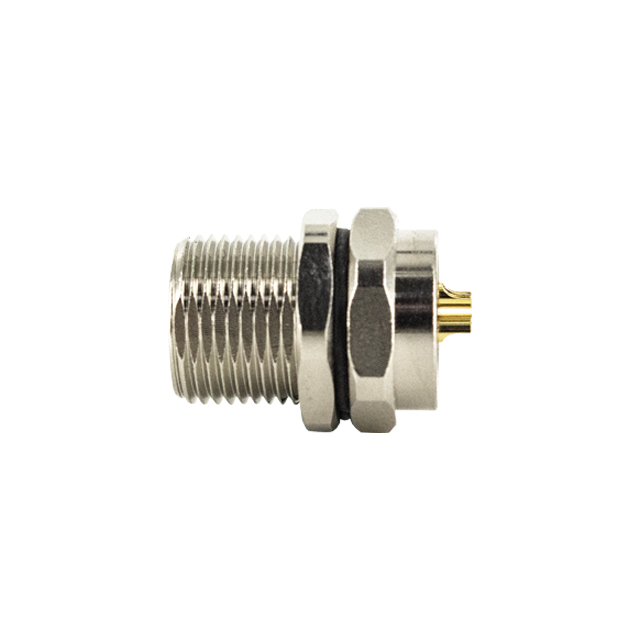

M8 A-CODE RECEPTACLE, 4PIN FEMAL
219A-04FAF
ActiveATTEND Technology
M8 A-CODE RECEPTACLE, 4PIN FEMAL
Description
General part information
219A-04FAF
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 219A-04FAF |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating | 3 A |
| Fastening Type | Threaded |
| Ingress Protection | Waterproof |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M8-4 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 50 VAC |
| Voltage Rating (DC) | 60 VDC |
