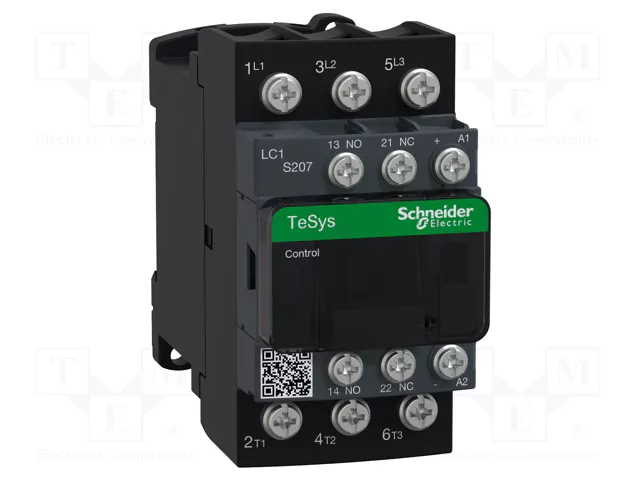

LC1D386SLS207
ActiveSCHNEIDER ELECTRIC
CONTACTOR: 3-POLE; NO X3; AUXILIARY CONTACTS: NC + NO; 72VDC; 38A
LC1D386SLS207
ActiveSCHNEIDER ELECTRIC
CONTACTOR: 3-POLE; NO X3; AUXILIARY CONTACTS: NC + NO; 72VDC; 38A
Description
General part information
LC1D386SLS207
CONTACTOR: 3-POLE; NO X3; AUXILIARY CONTACTS: NC + NO; 72VDC; 38A
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D386SLS207 |
|---|---|
| Coil Voltage | 72 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 38 A |
| Features | Suppressor, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 50.4 VDC |
| Must Release Voltage | 7.2 VAC |
| Operate Time | 75 ms |
| Pin Count | 3 pins |
| Release Time | 32 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Box Lug |
