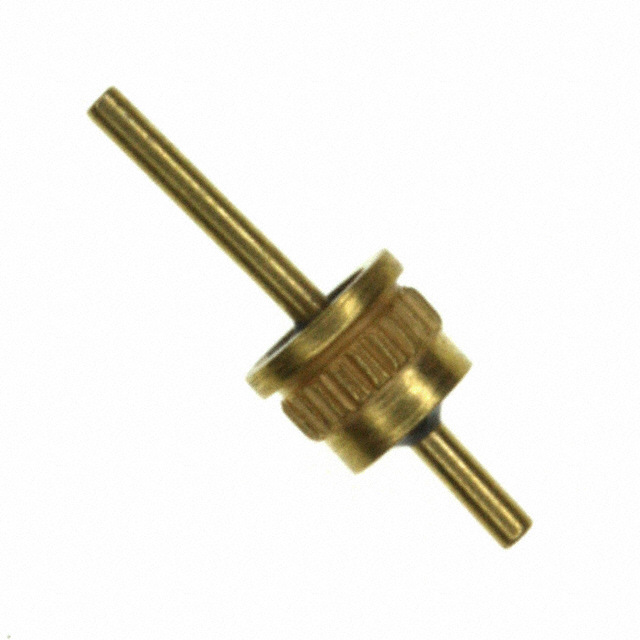

4306-010LF
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP FEEDTHRU 0.01UF 50V AXIAL
4306-010LF
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP FEEDTHRU 0.01UF 50V AXIAL
Description
General part information
4306-010LF
10000 pF Feed Through Capacitor 50V 5 A Axial, Press Fit
Technical Specifications
Parameters and characteristics for this part
| Specification | 4306-010LF |
|---|---|
| Capacitance | 10000 pF |
| Current | 5 A |
| Insertion Loss | 35 dB |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial, Press Fit |
| Size / Dimension Diameter | 0.146 in |
| Size / Dimension Length | 0.11 in |
| Tolerance (Negative) | 0 % |
| Tolerance (Positive) | 100 % |
| Type | Feed Through |
| Voltage - Rated | 50 V |
