5603802
ActivePhoenix Contact

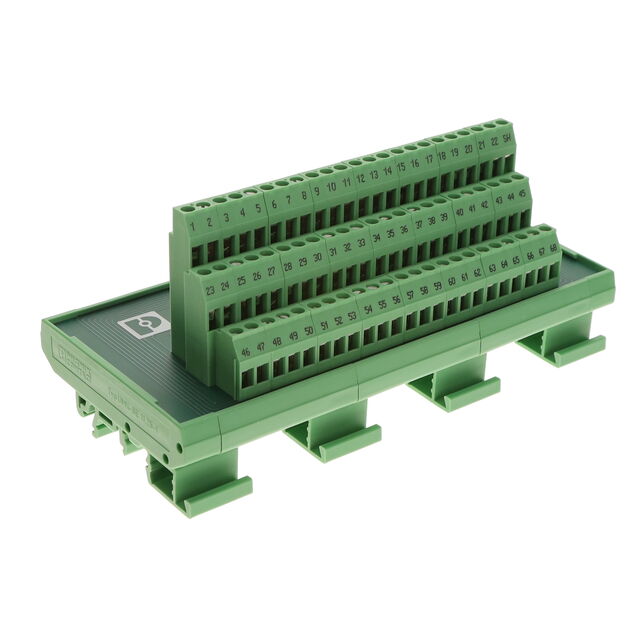

INTERFACE MOD DSUB FMALE 68POS
5603802
ActivePhoenix Contact
INTERFACE MOD DSUB FMALE 68POS
Description
General part information
5603802
68 Position Interface Module Terminal Blocks - Screw Connection To D-Sub, Female 12-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 5603802 |
|---|---|
| Control Side Cable Retainer Type | Jackscrew Socket |
| Control Side Connection Gender | Female |
| Control Side Connection Shape | D-Sub |
| Current Rating (Per Contact) | 1 A |
| Length | 6.181 in |
| Positions / Poles | 68 |
| Process Side Connection | Terminal Blocks, Screw Connection |
| Voltage - Rated | 50 V |
| Width | 3.031 in |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
