384472-E
ActiveTE Connectivity AMP Connectors
SRCA 2,54 4 M 1 SMD 137 E1 166 * GURT *
384472-E
ActiveTE Connectivity AMP Connectors
SRCA 2,54 4 M 1 SMD 137 E1 166 * GURT *
Description
General part information
384472-E

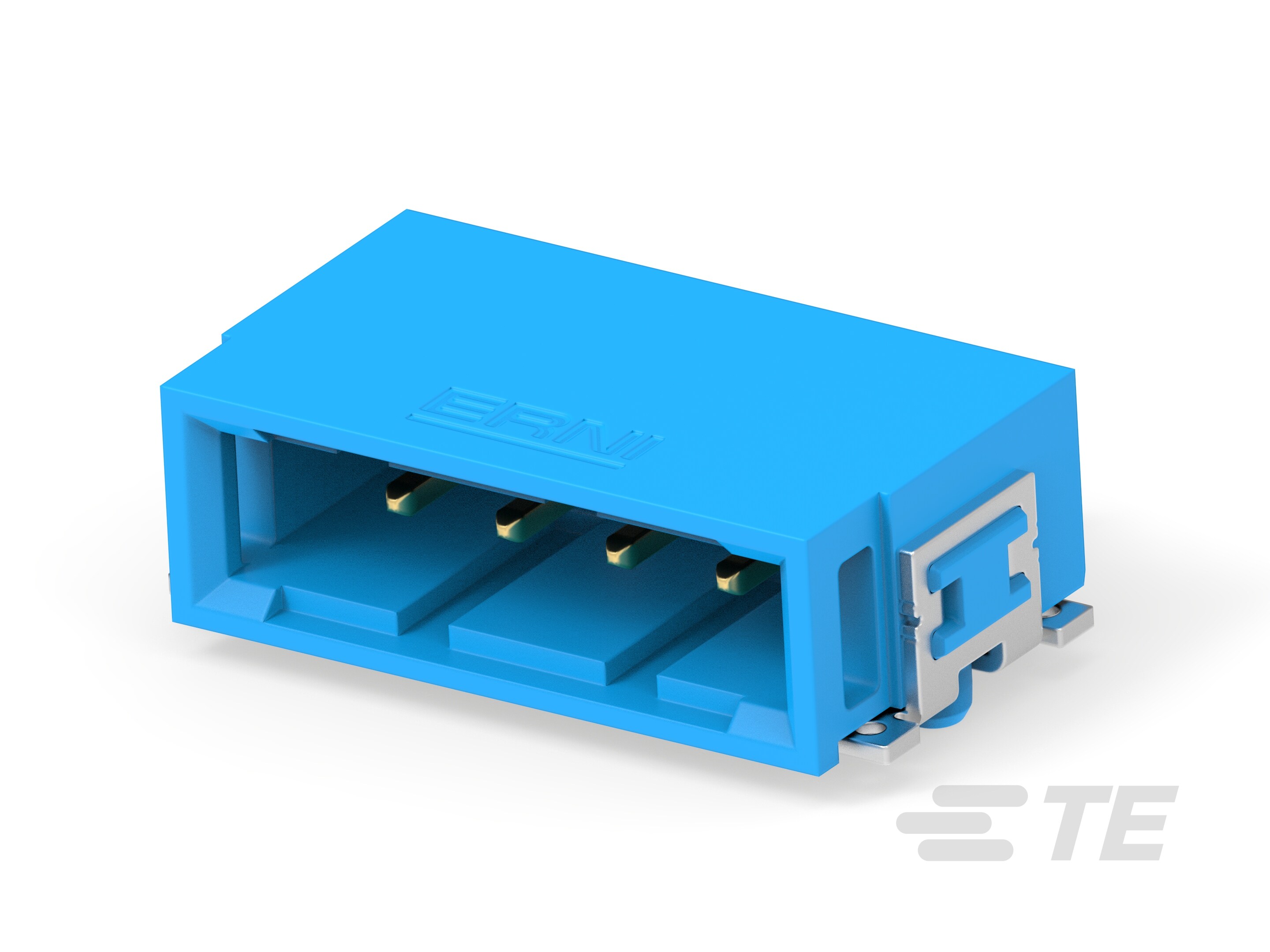

PCB Mount Header, Horizontal, Wire-to-Board, 4 Position, 2.54 mm [.1 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Power & Signal, Blue
Technical Specifications
Parameters and characteristics for this part
| Specification | 384472-E |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.161 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 12 A |
| Fastening Type | Push-Pull |
| Features | Board Guide, Solder Retention |
| Insulation Color | Blue |
| Insulation Height | 0.199 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 36 VAC |
