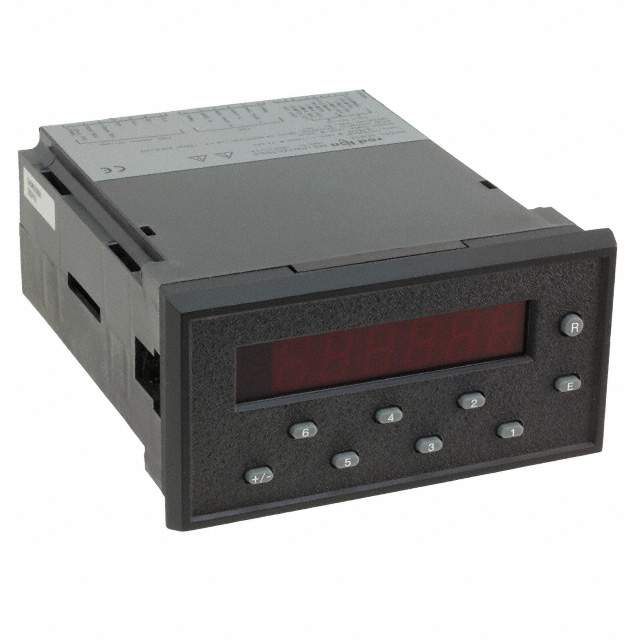

GEM33060
ObsoleteRed Lion Controls
COUNTER LED 6 CHAR 115/230V PNL
GEM33060
ObsoleteRed Lion Controls
COUNTER LED 6 CHAR 115/230V PNL
Description
General part information
GEM33060
Batch, Preset, Totalizer 115/230VAC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | GEM33060 |
|---|---|
| Count Rate | 10 kHz |
| Display Characters - Height | 0.56 in |
| Display Type | LED - Red Characters |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Input Type | No Voltage, Voltage |
| Mounting Type | Panel Mount |
| Number of Characters Per Row | 6 characters |
| Operating Mode | Individual, Down, Command, Up, Quadrature |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Output Type | Solid State, Relay |
| Panel Cutout Length | 127 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 63.5 mm |
| Reset | Front Panel, External, Programmable |
| Termination Style | Screw Terminal |
| Type | Totalizer, Batch, Preset |
| Voltage - Supply (Option 1) | 115 VAC |
| Voltage - Supply (Option 2) | 230 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
