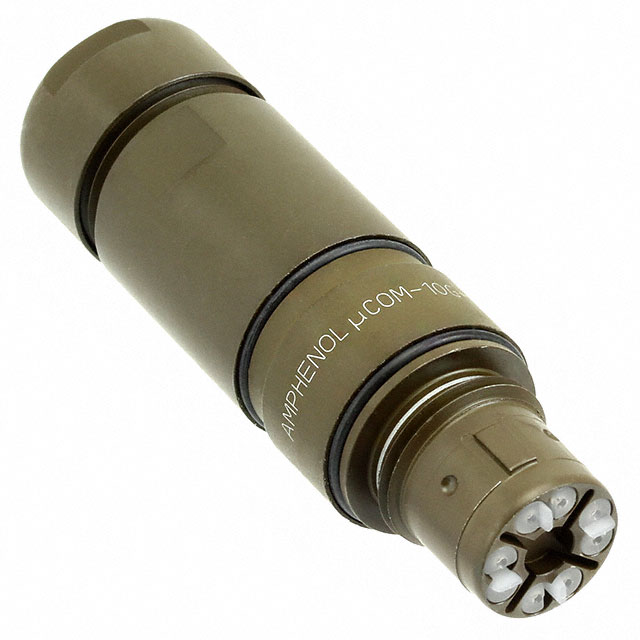

Specification	UCOM-10G+ LSGGA

Applications	Military, Aviation, Marine
Cable Opening	0.295 in
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Push-Pull, Threaded
Features	Backshell
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Position Types	Data
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Brass
Shell Size - Insert	11
Shell Size - Insert	11
Termination	Solder Cup

UCOM-10G+ Series

Part	Shell Material	Features	Termination	Mounting Type	Connector Type	Mounting Feature	Fastening Type	Contact Material	Applications	Number of Positions	Position Types	Primary Material	Contact Finish - Mating	Shell Size - Insert	Shell Size - Insert	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection IP Rating	Ingress Protection Description	Cable Opening	Color	Shell Finish
McGill Microwave Systems UCOM10G+RCU	Brass	Backshell	Crimp	Panel Mount	Female Sockets Receptacle	Bulkhead Front Side Nut	Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof
McGill Microwave Systems UCOM-10G+ LCUGA	Brass	Backshell	Crimp	Free Hanging (In-Line)	Female Sockets Receptacle		Push-Pull Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof	0.295 in
McGill Microwave Systems UCOM-10G+ PTSUGA	Brass	Backshell	Solder Cup	Free Hanging (In-Line)	Male Pins Plug		Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof	0.295 in
McGill Microwave Systems UCOM-10G+ LCGGA	Brass	Backshell	Crimp	Free Hanging (In-Line)	Female Sockets Receptacle		Push-Pull Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof	0.295 in	Olive Drab	Olive Drab Cadmium
McGill Microwave Systems UCOM-10G+ PTSBGA	Brass	Backshell	Solder Cup	Free Hanging (In-Line)	Male Pins Plug		Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof	0.295 in	Black	Black Nickel
McGill Microwave Systems UCOM-10G+ RP B	Brass		Solder	Panel Mount Through Hole	Female Sockets Receptacle	Bulkhead Front Side Nut	Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof		Black	Black Nickel
McGill Microwave Systems UCOM10G+RSG	Brass	Backshell	Solder Cup	Panel Mount	Female Sockets Receptacle	Bulkhead Front Side Nut	Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof		Olive Drab	Olive Drab Cadmium
McGill Microwave Systems UCOM-10G+ LCUB	Brass	Backshell	Crimp	Free Hanging (In-Line)	Female Sockets Receptacle		Push-Pull Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof
McGill Microwave Systems UCOM-10G+ RP G	Brass		Solder	Panel Mount Through Hole	Female Sockets Receptacle	Bulkhead Front Side Nut	Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof		Olive Drab	Olive Drab Cadmium
McGill Microwave Systems UCOM-10G+ PTCBB	Brass	Backshell	Crimp	Free Hanging (In-Line)	Male Pins Plug		Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof		Black	Black Nickel
