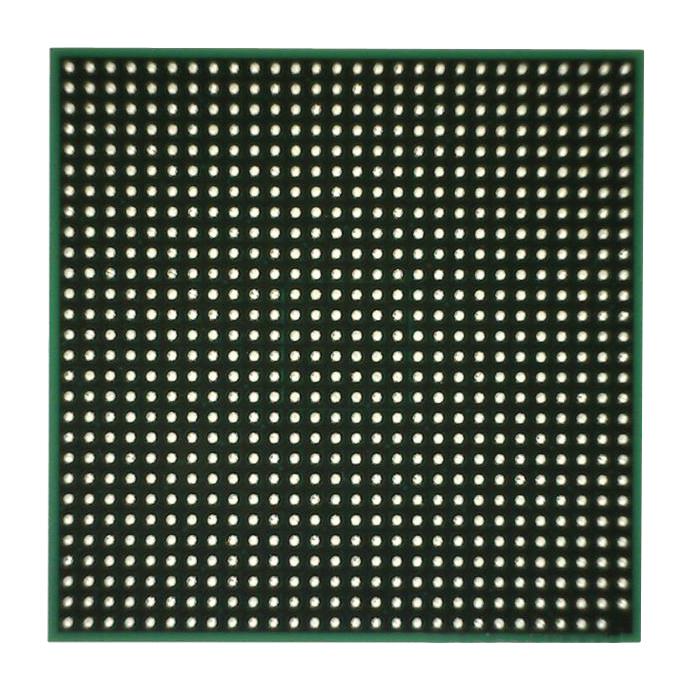

Microprocessor, i.MX 6Quad Series, 1 GHz, 1.35 V to 1.5 V, FCPBGA-624

MCIMX6Q5EYM10AC

NRND
NXP USA Inc.

MICROPROCESSOR, ARM CORTEX-A9, I.MX 6QUAD SERIES, 1 GHZ, 1.35 V TO 1.5 V, FCPBGA-624

Find alt
Microprocessor, i.MX 6Quad Series, 1 GHz, 1.35 V to 1.5 V, FCPBGA-624

MCIMX6Q5EYM10AC

NRND
NXP USA Inc.

MICROPROCESSOR, ARM CORTEX-A9, I.MX 6QUAD SERIES, 1 GHZ, 1.35 V TO 1.5 V, FCPBGA-624

Find alt

Description

General part information

MCIMX6Q5EYM10AC

The MCIMX6Q5EYM10AC is a 6Quad Applications Processor combines scalable platforms with broad levels of integration and power-efficient processing capabilities. This processor is part of a growing family of multimedia-focused products that offer high performance processing and are optimized for lowest power consumption. The applications processor features enhanced capabilities of high-tier portable applications by fulfilling MIPS needs of operations systems and games, smart speed technology that enables the designer to deliver a feature-rich product, requiring levels of power far lower than industry expectations.

Technical Specifications

Parameters and characteristics for this part

SpecificationMCIMX6Q5EYM10AC
Additional InterfacesCAN, MMC/SD/SDIO, I2S, UART, SAI, I2C, SSI, SPI
Bus Width32 Bit
Co-Processors/DSPMultimedia, NEON™ SIMD
Core ProcessorARM® Cortex®-A9
Display & Interface ControllersKeypad, LCD
Ethernet Ports1
Ethernet Speed Options100Mbps, 10Mbps, 1000Mbps
Graphics AccelerationYes
Mounting TypeSurface Mount
Number of Cores4 Core
Operating Temperature (Max)105 °C
Operating Temperature (Min)-20 °C
Package / Case624-LFBGA, FCBGA
Package Length21 mm
Package Name624-FCPBGA
Package Width21 mm
RAM ControllersLVDDR3, DDR3, LPDDR2
SATA InterfaceSATA
SATA Port Count1
SATA Speed3 Gbps
Security FeaturesTamper Detection, Secure Memory, Cryptography, ARM TZ, RTIC, Boot Security, Secure Fusebox, Secure RTC, Secure JTAG
Speed1 GHz
USBUSB 2.0 + PHY
USB 2.0 PHY Count4 count
Voltage - I/O (Option 1)1.8 V
Voltage - I/O (Option 2)2.5 V
Voltage - I/O (Option 3)2.8 V
Voltage - I/O (Option 4)3.3 V
