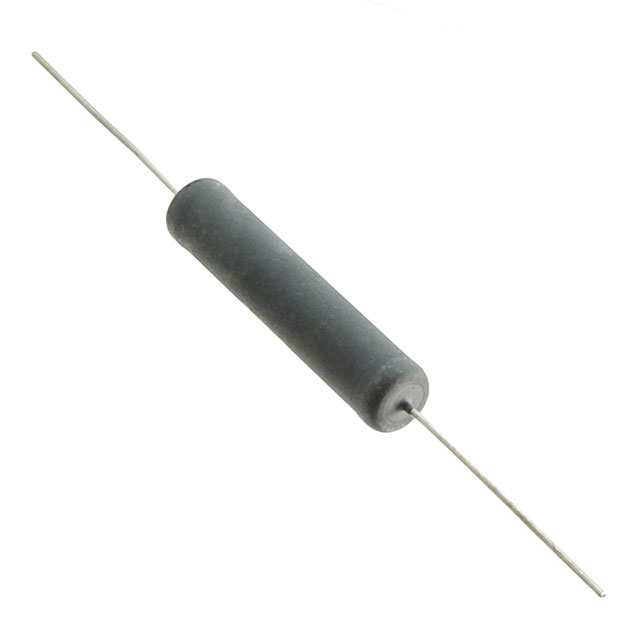

Specification	UB15-15RF1

Composition	Wirewound
Features	Safety, Moisture Resistant, Pulse Withstanding, Current Sense, Flame Proof
Number of Terminations	2
Operating Temperature (Max)	250 °C
Operating Temperature (Min)	-55 °C
Package / Case	Axial
Package Name	Axial
Power (Watts)	15 W
Resistance	15 Ohm
Size / Dimension Diameter	0.375 in
Size / Dimension Length	1.78 in
Temperature Coefficient	20 ppm/¯C
Tolerance	1 %

UB Series

Part	Resistance	Power (Watts)	Package / Case	Temperature Coefficient	Features	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Diameter	Number of Terminations	Package Name	Tolerance	Composition
Bourns Inc. UB6-36KF1	36 kOhm	6 W	Axial	20 ppm/¯C	Flame Retardant Coating Pulse Withstanding Safety	250 °C	-55 °C	0.626 in	0.252 in	2	Axial	1 %	Wirewound
Bourns Inc. UB10-10KF1	10 kOhm	7 W	Axial	20 ppm/¯C	Current Sense Flame Proof Moisture Resistant Pulse Withstanding Safety	250 °C	-55 °C	0.874 in	0.311 in	2	Axial	1 %	Wirewound
Bourns Inc. UB6-10KF1	10 kOhm	6 W	Axial	20 ppm/¯C	Flame Retardant Coating Pulse Withstanding Safety	250 °C	-55 °C	0.626 in	0.252 in	2	Axial	1 %	Wirewound
Bourns Inc. UB3C-180RF1	180 Ohm	3 W	Axial	20 ppm/¯C	Current Sense Flame Proof Moisture Resistant Pulse Withstanding Safety	250 °C	-55 °C	0.35 in	0.157 in	2	Axial	1 %	Wirewound
Bourns Inc. UB3C-1K5F1	1.5 kOhms	3 W	Axial	20 ppm/¯C	Current Sense Flame Proof Moisture Resistant Pulse Withstanding Safety	250 °C	-55 °C	0.35 in	0.157 in	2	Axial	1 %	Wirewound
Bourns Inc. UB5C-120RF1	120 Ohm	5 W	Axial	20 ppm/¯C	Current Sense Flame Proof Moisture Resistant Pulse Withstanding Safety	250 °C	-55 °C	0.5 in	0.25 in	2	Axial	1 %	Wirewound
Bourns Inc. UB5C-200RF1	200 Ohm	5 W	Axial	20 ppm/¯C	Current Sense Flame Proof Moisture Resistant Pulse Withstanding Safety	250 °C	-55 °C	0.5 in	0.25 in	2	Axial	1 %	Wirewound
Bourns Inc. UB3C-33RF1	33 Ohms	3 W	Axial	20 ppm/¯C	Current Sense Flame Proof Moisture Resistant Pulse Withstanding Safety	250 °C	-55 °C	0.35 in	0.157 in	2	Axial	1 %	Wirewound
Bourns Inc. UB3-25R5F1	25.5 Ohm	3 W	Axial	20 ppm/¯C	Flame Retardant Coating Pulse Withstanding Safety	250 °C	-55 °C	0.406 in	0.094 in	2	Axial	1 %	Wirewound
Bourns Inc. UB3C-2RF8	2 Ohm	3 W	Axial	50 ppm/°C	Current Sense Flame Proof Moisture Resistant Pulse Withstanding Safety	250 °C	-55 °C	0.35 in	0.157 in	2	Axial	1 %	Wirewound
