PE9799
ActivePasternack
COAX ADAPT 7/16 DIN TO 2.2/5
PE9799
ActivePasternack
COAX ADAPT 7/16 DIN TO 2.2/5
Description
General part information
PE9799

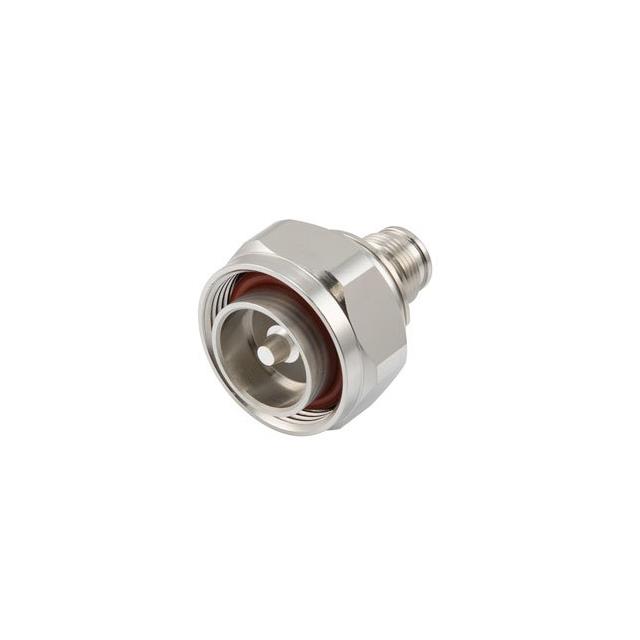

Adapter Coaxial Connector 7/16 Plug, Male Pin To 2.2/5 Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9799 |
|---|---|
| Adapter Series | 7/16 DIN to 2.2/5 |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, 7/16 Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | 2.2/5 Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 8 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Straight |
