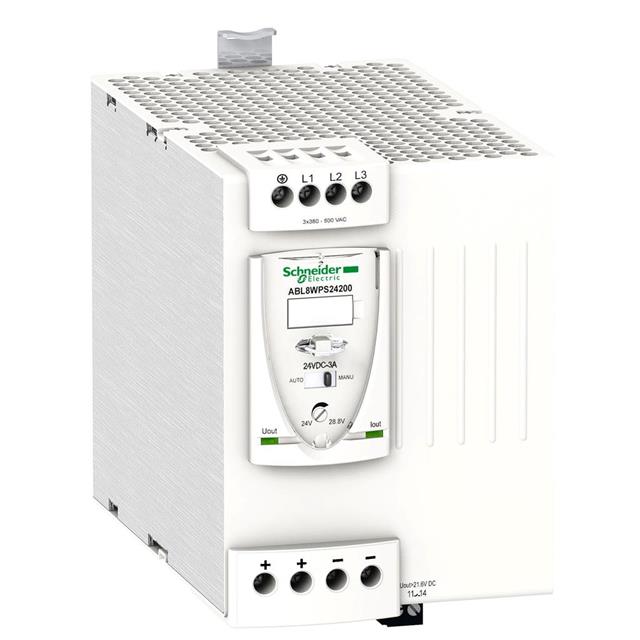

ABL8WPS24200
ObsoleteAC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 480 W, 24 VDC, 20 A
ABL8WPS24200
ObsoleteAC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 480 W, 24 VDC, 20 A
Description
General part information
ABL8WPS24200
The ABL8WPS24200 is a Phaseo® Power Supply designed for simple machines and applications, modular and optimum power supply is primarily appreciated for their extreme compactness. The new generation of wide-operating range universal power supplies integrates many of the new functions and offers even more user services with ingenuity by means of function modules.
Technical Specifications
Parameters and characteristics for this part
| Specification | ABL8WPS24200 |
|---|---|
| AC Voltage - Input (Max) | 550 VAC |
| AC Voltage - Input (Min) | 320 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | IEC, EAC, UL, EN, cCSAus, RCM |
| Current - Output (Max) | 20 A |
| Efficiency | 92 % |
| Features | IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 480 W |
| Size / Dimension Height | 5.63 in |
| Size / Dimension Length | 6.3 in |
| Size / Dimension Width | 3.78 in |
| Standard Number | UL 508, 60950-1, 62368-1 |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 24 V |
