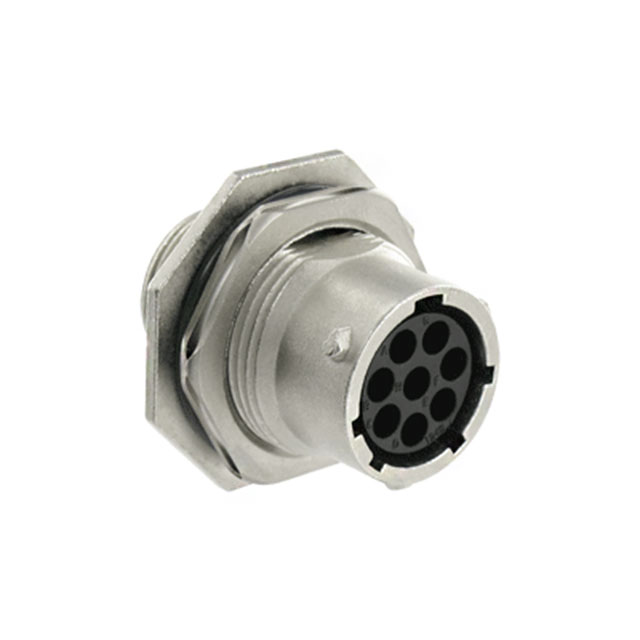

Specification	UT07128SH6

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp, Solder
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	8
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Finish	Nickel
Shell Material	Halogen Free, Zinc Alloy
Shell Size - Insert Length	12 mm
Shell Size - Insert Width	8 mm
Shielding	Shielded
Type	For Female Sockets

UT071 Series

...

Part	Material Flammability Rating	Contact Type	Type	Contact Size	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Mounting Feature	Number of Positions	Shell Material	Mounting Type	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Insert Material	Fastening Type	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Shell Finish	Contact Shape	Orientation	Housing Color	Note	Shell Size - Insert Width	Shell Size - Insert Length	Shell Size - Insert	Position Types
Amphenol Aerospace Operations UT071823PH	UL94 V-0	Crimp Solder	For Male Pins	16 S	23	18	Bulkhead Front Side Nut	23	Halogen Free Zinc Alloy	Panel Mount	Receptacle Housing	Dust Tight Waterproof	IP67	Glass Filled Thermoplastic	Bayonet Lock	Shielded	-40 °C	105 °C	Nickel	Circular	N (Normal)	Silver	Contacts Not Included
Amphenol Aerospace Operations UT07104SH01	UL94 V-0	Crimp Solder	For Female Sockets	16 S			Bulkhead Front Side Nut	4	Halogen Free Zinc Alloy	Panel Mount	Receptacle Housing	Dust Tight Waterproof	IP67	Glass Filled Thermoplastic	Bayonet Lock	Shielded	-40 °C	105 °C	Nickel	Circular	N (Normal)	Silver	Contacts Not Included	4 mm	10 mm
Amphenol Aerospace Operations UT07102W2PH6	UL94 V-0	Crimp Solder	For Male Pins	12 20			Bulkhead Front Side Nut	4	Halogen Free Zinc Alloy	Panel Mount	Receptacle Housing	Dust Tight Water Resistant Waterproof	IP68 IP69K	Glass Filled Thermoplastic	Bayonet Lock	Shielded	-40 °C	105 °C	Nickel	Circular	N (Normal)	Silver	Contacts Not Included			10-2W2
Amphenol Aerospace Operations UT071412PWH	UL94 V-0	Crimp Solder	For Male Pins	16 S			Bulkhead Front Side Nut	12	Halogen Free Zinc Alloy	Panel Mount	Receptacle Housing	Dust Tight Waterproof	IP67	Glass Filled Thermoplastic	Bayonet Lock	Shielded	-40 °C	105 °C	Nickel	Circular	W	Silver	Contacts Not Included	12 mm	14 mm
Amphenol Aerospace Operations UT07102W2PH	UL94 V-0	Crimp Solder	For Male Pins	12 20			Bulkhead Front Side Nut	4	Halogen Free Zinc Alloy	Panel Mount	Receptacle Housing	Dust Tight Waterproof	IP67	Glass Filled Thermoplastic	Bayonet Lock	Shielded	-40 °C	105 °C	Nickel	Circular	N (Normal)	Silver	Contacts Not Included			10-2W2
Amphenol Aerospace Operations UT071823PH6	UL94 V-0	Crimp Solder	For Male Pins	16 S	23	18	Bulkhead Front Side Nut	23	Halogen Free Zinc Alloy	Panel Mount	Receptacle Housing	Dust Tight Water Resistant Waterproof	IP68 IP69K	Glass Filled Thermoplastic	Bayonet Lock	Shielded	-40 °C	105 °C	Nickel	Circular	N (Normal)	Silver	Contacts Not Included
Amphenol Aerospace Operations UT071619SWH	UL94 V-0	Crimp Solder	For Female Sockets	16 S	19	16 S	Bulkhead Front Side Nut	19	Halogen Free Zinc Alloy	Panel Mount	Receptacle Housing	Dust Tight Waterproof	IP67	Glass Filled Thermoplastic	Bayonet Lock	Shielded	-40 °C	105 °C	Nickel	Circular	W	Silver	Contacts Not Included
Amphenol Aerospace Operations UT07104PWH	UL94 V-0	Crimp Solder	For Male Pins	16 S			Bulkhead Front Side Nut	4	Halogen Free Zinc Alloy	Panel Mount	Receptacle Housing	Dust Tight Waterproof	IP67	Glass Filled Thermoplastic	Bayonet Lock	Shielded	-40 °C	105 °C	Nickel	Circular	W	Silver	Contacts Not Included	4 mm	10 mm
Amphenol Aerospace Operations UT071619SH	UL94 V-0	Crimp Solder	For Female Sockets	16 S	19	16 S	Bulkhead Front Side Nut	19	Halogen Free Zinc Alloy	Panel Mount	Receptacle Housing	Dust Tight Waterproof	IP67	Glass Filled Thermoplastic	Bayonet Lock	Shielded	-40 °C	105 °C	Nickel	Circular	N (Normal)	Silver	Contacts Not Included
Amphenol Aerospace Operations UT07103PH01	UL94 V-0	Crimp Solder	For Male Pins	16 S			Bulkhead Front Side Nut	3	Halogen Free Zinc Alloy	Panel Mount	Receptacle Housing	Dust Tight Waterproof	IP67	Glass Filled Thermoplastic	Bayonet Lock	Shielded	-40 °C	105 °C	Nickel	Circular	N (Normal)	Silver	Contacts Not Included	3 mm	10 mm		PE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

UT07128SH6 | Datasheet
