Description
General part information

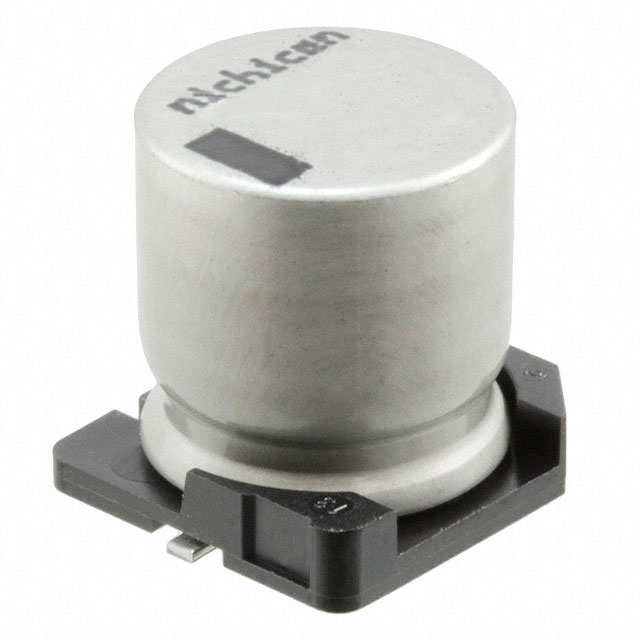

UUJ2D100MNQ1ZD
10 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UUJ2D100MNQ1ZD |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Height - Seated (Max) | 0.571 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 80 mA, 128 mA |
| Size / Dimension Diameter | 0.492 in |
| Surface Mount Land Length | 0.535 " |
| Surface Mount Land Width | 0.535 " |
| Tolerance | 20 % |
| Voltage - Rated | 200 VDC |
