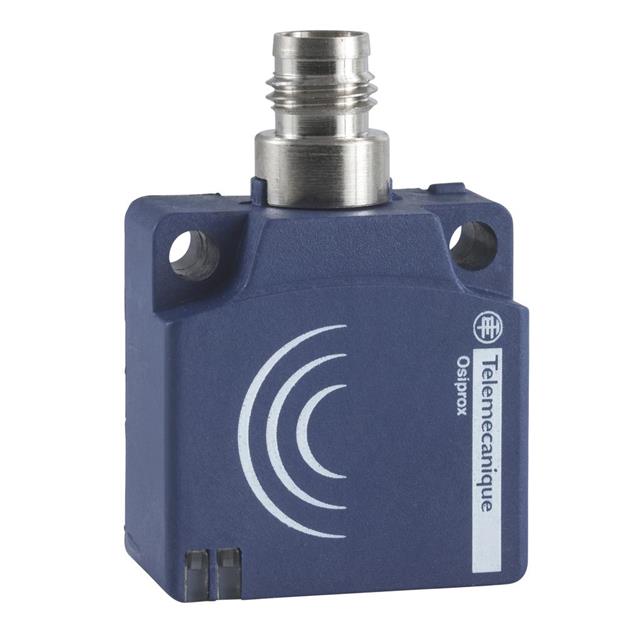

XS8E1A1PAM8
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, 15 MM, PNP / SPST-NO, OSISENSE XS SERIES, 12 V TO 24 V
XS8E1A1PAM8
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, 15 MM, PNP / SPST-NO, OSISENSE XS SERIES, 12 V TO 24 V
Description
General part information
XS8E1A1PAM8
Inductive Proximity Sensor 0.394" (10mm) IP67 Module
Technical Specifications
Parameters and characteristics for this part
| Specification | XS8E1A1PAM8 |
|---|---|
| Indicator | No Indicator |
| Ingress Protection | IP67 |
| Material - Body | Polybutylene Terephthalate (PBT) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Module |
| Sensing Distance | 0.394 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
