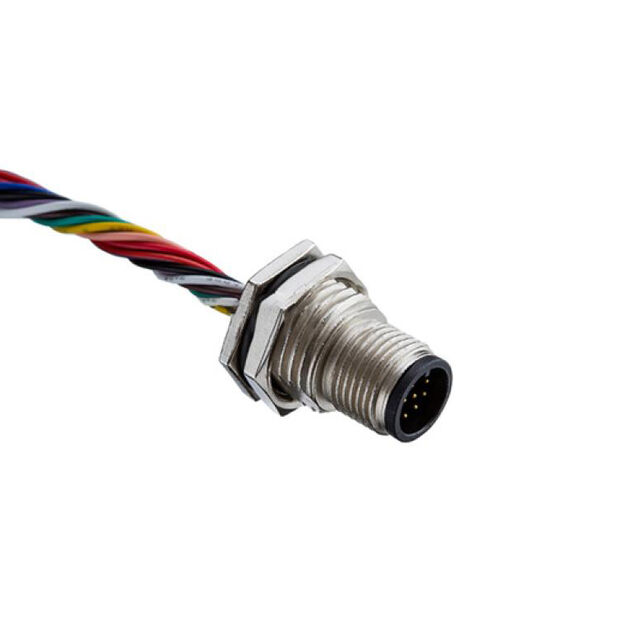

MSAS-10PMMS-SF8CA5
ActiveMcGill Microwave Systems
CIR CBL 10POS RCPT TO WIRE 4.92'
MSAS-10PMMS-SF8CA5
ActiveMcGill Microwave Systems
CIR CBL 10POS RCPT TO WIRE 4.92'
Description
General part information
MSAS-10PMMS-SF8CA5
Circular Cable Assembly Shielded 4.92' (1.50m)
Technical Specifications
Parameters and characteristics for this part
| Specification | MSAS-10PMMS-SF8CA5 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 10 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Length | 4.92 ft |
| Shielding | Shielded |
| Usage | Industrial Environments |
