Description

General part information

1SNG623004R0000

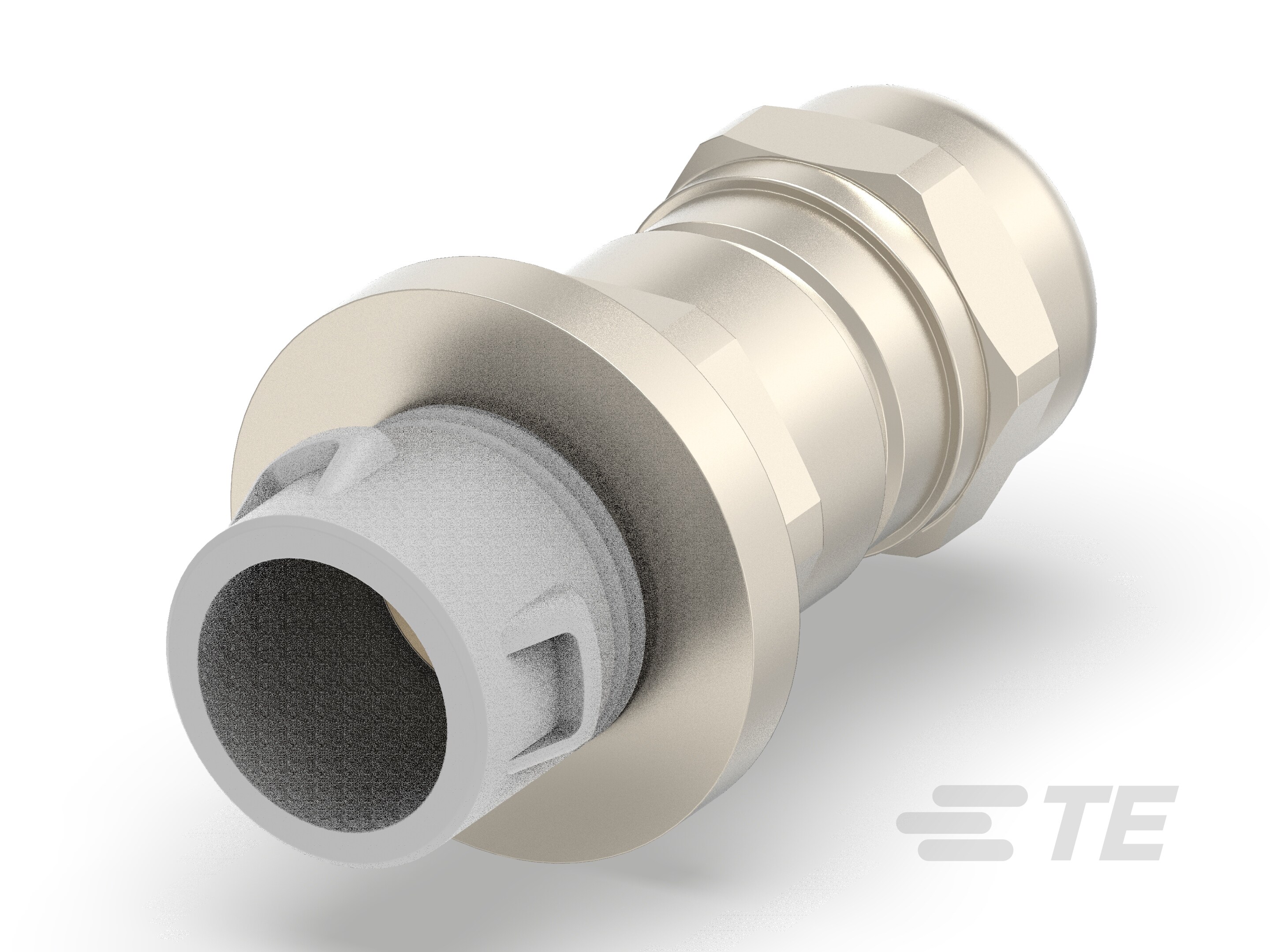

Cable Gland, Snap-In, Brass, 5 – 9 mm Clamping Range, Nickel Plating, IP68

Technical Specifications

Parameters and characteristics for this part

Specification1SNG623004R0000
ColorBeige
Ingress Protection DescriptionDust Tight, Waterproof
Ingress Protection IP RatingIP68
MaterialNickel Plated, Brass
Operating Temperature (Max)100 °C
Operating Temperature (Min)-20 °C
Outside Cable Diameter (Max)0.354 in
Outside Cable Diameter (Min)0.197 in
Thread Length0.354 in
TypeCable Gland
