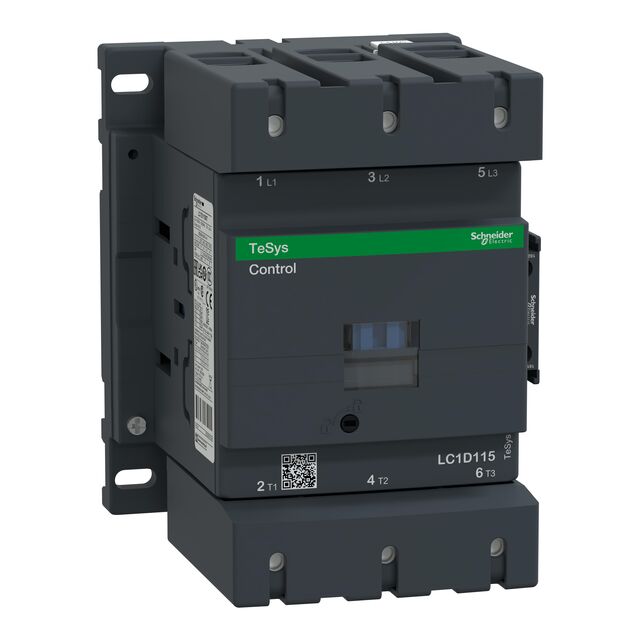

LC1D115P7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, 115 A, DIN RAIL, 230 VAC, DPDT, 3 POLE, 59 KW
LC1D115P7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, 115 A, DIN RAIL, 230 VAC, DPDT, 3 POLE, 59 KW
Description
General part information
LC1D115P7
CONTACTOR, 115 A, DIN RAIL, 230 VAC, DPDT, 3 POLE, 59 KW
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D115P7 |
|---|---|
| Coil Voltage | 230 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 115 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 184 VDC |
| Must Release Voltage | 69 VAC |
| Operate Time | 50 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 1000 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
