CWR29FC157KCXC
ActiveKYOCERA AVX
CAP TANT 150UF 10% 10V 2721
CWR29FC157KCXC
ActiveKYOCERA AVX
CAP TANT 150UF 10% 10V 2721
Description
General part information
CWR29FC157KCXC

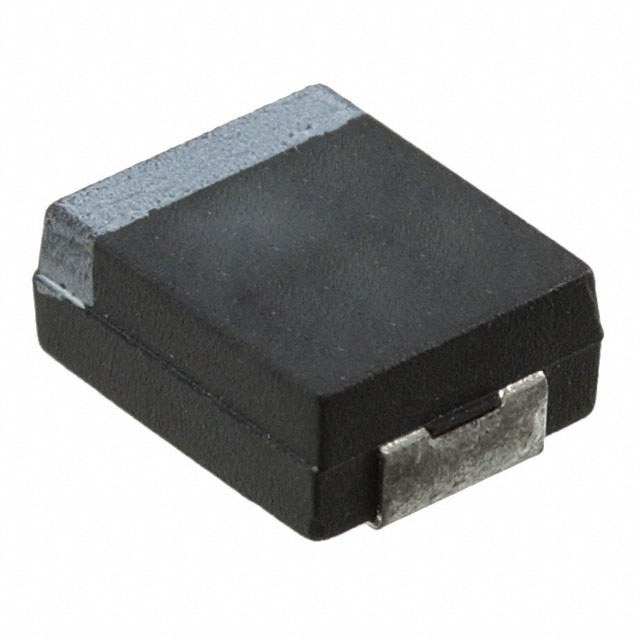

150 µF Molded Tantalum Capacitors 10 V 2721 (6954 Metric) 65mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CWR29FC157KCXC |
|---|---|
| Capacitance | 150 µF |
| ESR (Equivalent Series Resistance) | 65 mOhm |
| Failure Rate (Percent) | 0.01 % |
| Failure Rate Rating | C |
| Features | High Reliability |
| Grade | Military |
| Height - Seated (Max) | 0.108 in |
| Manufacturer Size Code | X |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2721 (6954 Metric) |
| Qualification | 11, MIL-PRF-55365 |
| Size / Dimension Length | 0.273 in |
| Size / Dimension Width | 0.213 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 10 V |
