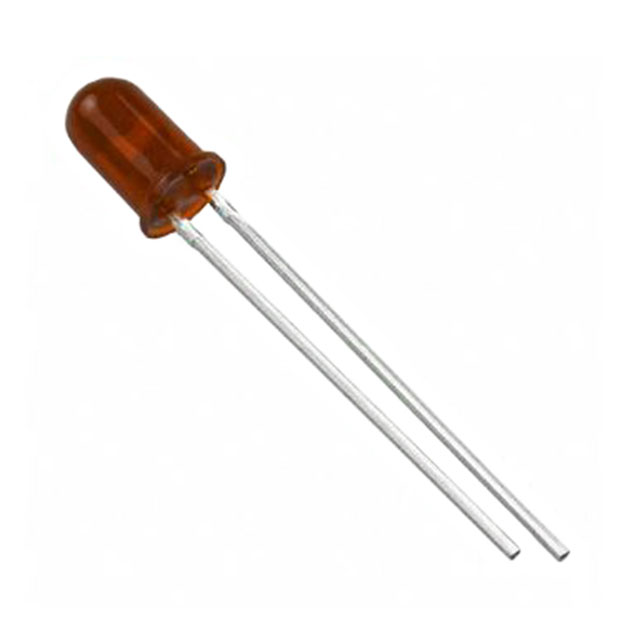

4302H3-12V
ActiveVisual Communications Company - VCC
LED AMBER DIFFUSED T-1 3/4 T/H
4302H3-12V
ActiveVisual Communications Company - VCC
LED AMBER DIFFUSED T-1 3/4 T/H
Description
General part information
4302H3-12V
Amber LED Indication - Discrete 12V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 4302H3-12V |
|---|---|
| Color | Amber |
| Configuration | Standard |
| Current - Test | 13 mA |
| Height (Max) | 10.08 mm |
| Lens Color | Amber |
| Lens Size | 5 mm |
| Lens Size (Code) | T-1 3/4 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 8 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Name | T-1 3/4 |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 12 VAC |
| Wavelength - Peak | 583 nm |
