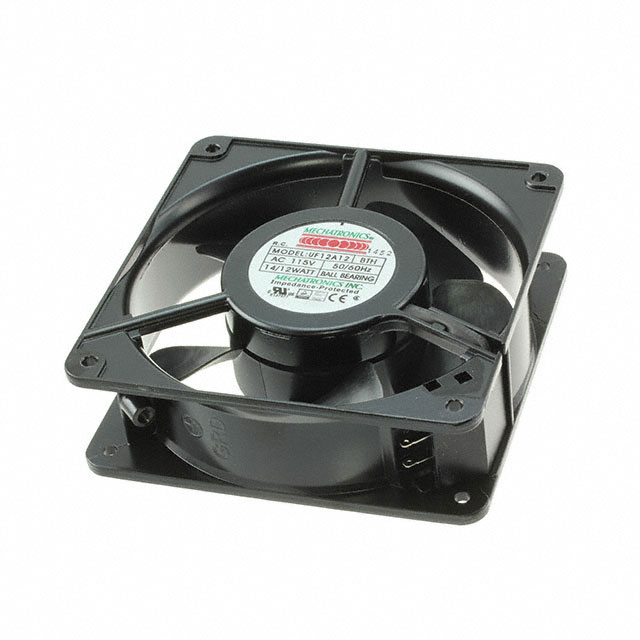

UF12A12-BTHR-T1
ActiveMechatronics Bearing Group
FAN AXIAL 120X38MM 115VAC TERM
Deep-Dive with AI
Search across all available documentation for this part.
UF12A12-BTHR-T1
ActiveMechatronics Bearing Group
FAN AXIAL 120X38MM 115VAC TERM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UF12A12-BTHR-T1 |
|---|---|
| Air Flow | 106 CFM |
| Air Flow | 2.97 mł/min |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP) |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 46 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 12 W |
| RPM | 3100 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 87.2 Pa |
| Static Pressure | 0.35 in H2O |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 0.53 kg |
| Weight | 1.168 lbs |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.30 | |
| 10 | $ 19.45 | |||
| 25 | $ 18.71 | |||
Description
General part information
UF12A12-BTHR-T1
Fan Tubeaxial 115VAC Square - 120mm L x 120mm H Ball 106.0 CFM (2.97m³/min) 2 Terminals
