A-USBC-20F0-EA-GSR07

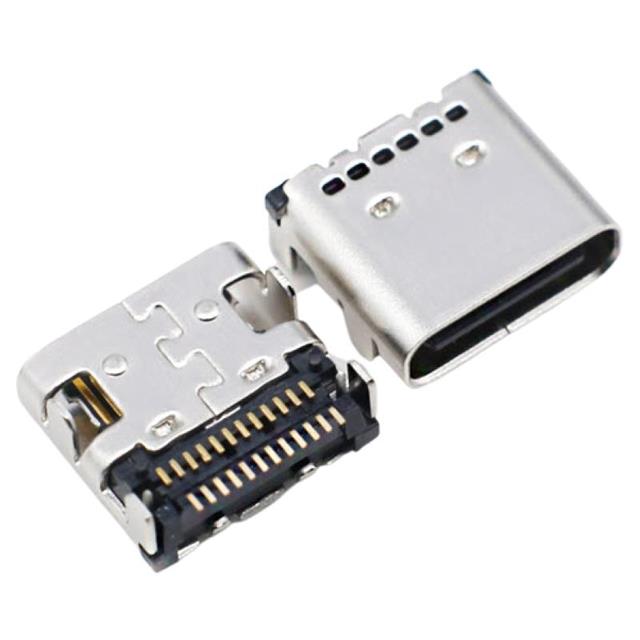

USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | A-USBC-20F0-EA-GSR07 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating | 3 A |
| Gender | Receptacle |
| Ingress Protection Description | Waterproof |
| Ingress Protection IP Rating | IPX7 |
| Insulation Color | Black |
| Mating Cycles | 10000 cycles |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Contacts (Dummy) | 8 |
| Number of Contacts (Functional) | 16 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Shell/Shielding Material | Steel (SUS304) |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
