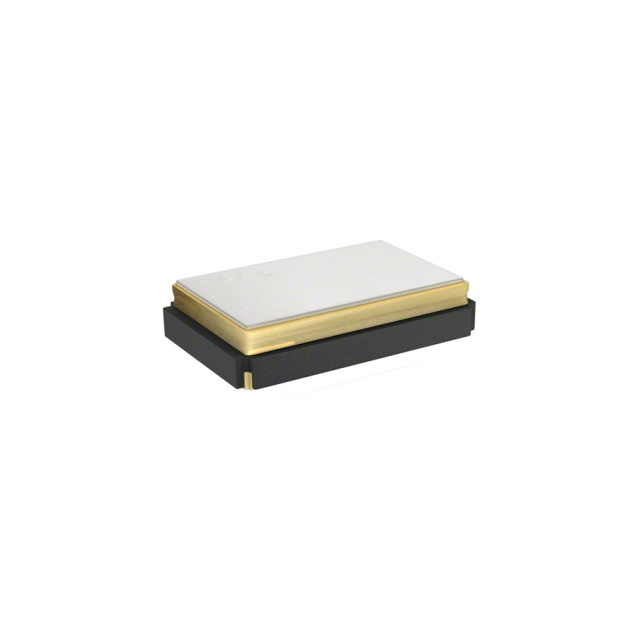

G9327A014
ActiveDiodes Inc
CRYSTAL PLASTIC SMD2012
G9327A014
ActiveDiodes Inc
CRYSTAL PLASTIC SMD2012
Description
General part information
G9327A014
32.768 kHz ±10ppm Crystal 12.5pF 70 kOhms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | G9327A014 |
|---|---|
| ESR (Equivalent Series Resistance) | 70 kOhm |
| Frequency | 0.032768 MHz |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.024 in |
| Load Capacitance | 12.5 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 2-SMD |
| Package Length | 2 mm |
| Package Name | 2-SMD |
| Package Width | 1.2 mm |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.047 in |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
