1460191
ObsoletePhoenix Contact

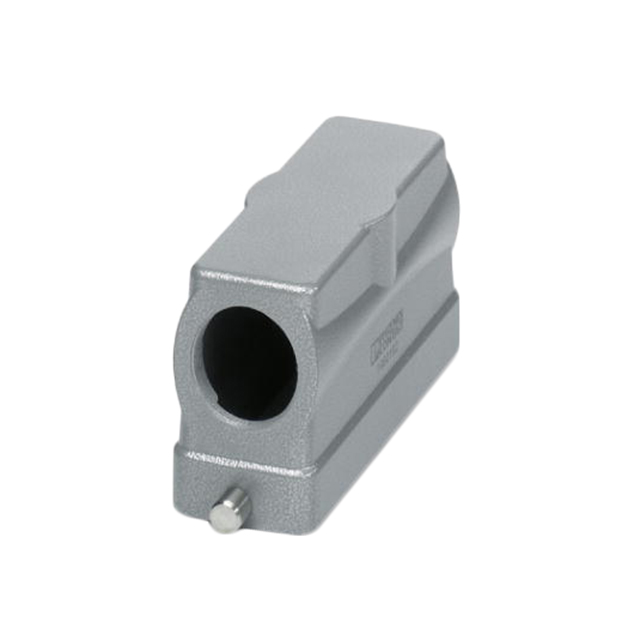

CONN HOOD SIDE ENTRY SZB24 M25
1460191
ObsoletePhoenix Contact
CONN HOOD SIDE ENTRY SZB24 M25
Description
General part information
1460191
Hood Connector Side Entry M25 B24 IP65 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 1460191 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B24 |
| Size / Dimension Height | 2.559 in |
| Size / Dimension Length | 4.724 in |
| Size / Dimension Width | 1.693 in |
| Style | Side Entry |
| Thread Size | M25 |
