82512 8771000

Active

Belden Inc.

MULTI-PAIR 25COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 25COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	82512 8771000

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.278 in
Jacket (Insulation) Diameter [diameter]	7.06 mm
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	25
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Length	Length	Jacket Color	Conductor Insulation	Usage	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Shield Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Number of Conductors	Features	Wire Gauge	Conductor Material	Cable Type
Belden Inc. 82512 8771000	1000 ft	304.8 m	Natural	Fluorinated Ethylene-Propylene (FEP)	Computer	Foil	60 °C	0 °C	0.015 in	0.381 mm	100 %	Aluminum	300 V	32 AWG	7	0.278 in	7.06 mm	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	25	Drain Wire	24 AWG	Copper Tinned	Multi-Pair

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 16.60

General part information

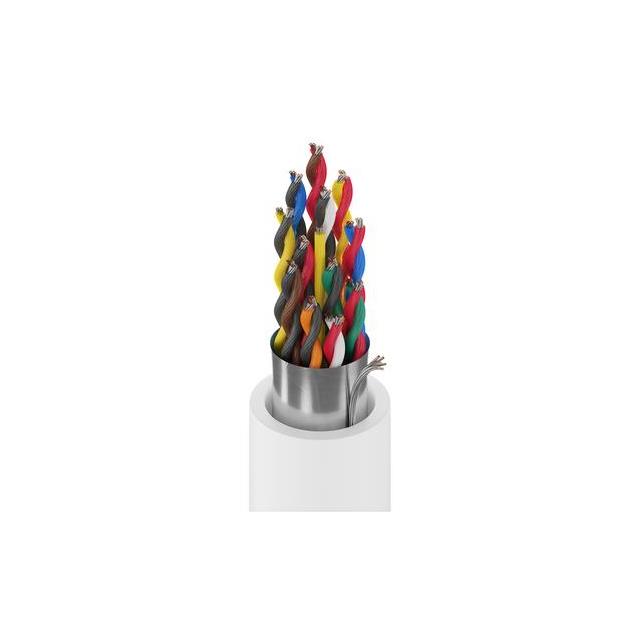

25 (12.5 Pair Twisted) Conductor Multi-Pair Cable Natural 24 AWG Foil 1000.0' (304.8m)
