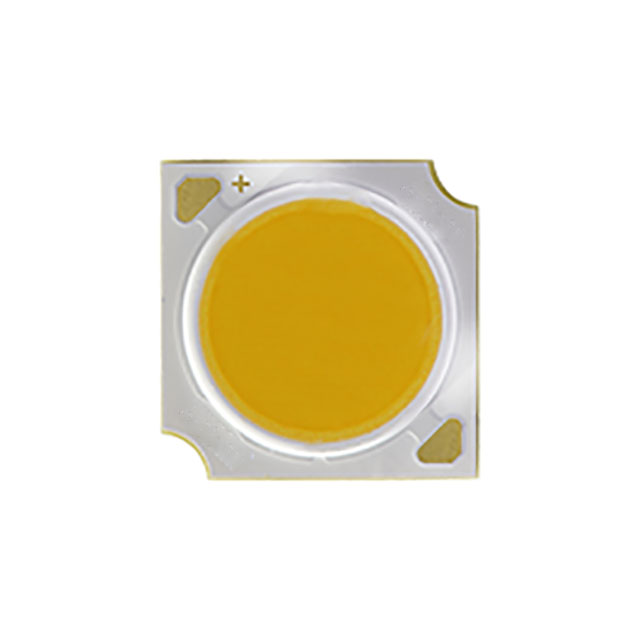

Specification	CMT1930-0000-00PN0U0A30G

CCT (K)	3000 K
CCT Description	3-Step MacAdam Ellipse
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max	1.08 A
Current - Test	800 mA
Height	1.45 mm
Lens Type	Flat
Light Emitting Surface (LES) Diameter	14.5 mm
Lumens/Watt	135 lm/W
Luminous Flux (Typical)	3724 lm
Size / Dimension Length	19 mm
Size / Dimension Width	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	34.4 V

CMT1930 Series

Part	Lumens/Watt	Current - Max	Temperature - Test	Type	Height	Current - Test	CCT (K)	CCT Description	Color	Size / Dimension Width	Size / Dimension Length	Configuration	Voltage - Forward (Vf) (Typ)	Viewing Angle	Luminous Flux (Typical)	Light Emitting Surface (LES) Diameter	CRI (Color Rendering Index)	Lens Type
CreeLED, Inc. CMT1930-0000-000N0U0A57G	54 lm/W	500 mA	85 °C	Chip On Board (COB)	1.45 mm	800 mA	5700 K	3-Step MacAdam Ellipse	Cool White	19 mm	19 mm	Square	33.7 V	115 °	921 lm	14.5 mm	90	Flat
CreeLED, Inc. CMT1930-0000-000N0Z0A27H	41 lm/W	500 mA	85 °C	Chip On Board (COB)	1.45 mm	800 mA	2700 K	2-Step MacAdam Ellipse	Warm White	19 mm	19 mm	Square	33.7 V	115 °	691 lm	14.5 mm	95	Flat
CreeLED, Inc. CMT1930-0000-000N0H0AL7B	58 lm/W	500 mA	85 °C	Chip On Board (COB)	1.45 mm	800 mA	3000 K	2-Step MacAdam Ellipse	Warm White	19 mm	19 mm	Square	33.7 V	115 °	985 lm	14.5 mm	80	Flat
CreeLED, Inc. CMT1930-0000-000N0H0A30H	58 lm/W	500 mA	85 °C	Chip On Board (COB)	1.45 mm	800 mA	3000 K	2-Step MacAdam Ellipse	Warm White	19 mm	19 mm	Square	33.7 V	115 °	985 lm	14.5 mm	80	Flat
CreeLED, Inc. CMT1930-0000-000N0B0A57E	68 lm/W	500 mA	85 °C	Chip On Board (COB)	1.45 mm	800 mA	5700 K	5-Step MacAdam Ellipse	Cool White	19 mm	19 mm	Square	33.7 V	115 °	1159 lm	14.5 mm	70	Flat
CreeLED, Inc. CMT1930-0000-000N0H0AL7B	58 lm/W	500 mA	85 °C	Chip On Board (COB)	1.45 mm	800 mA	3000 K	2-Step MacAdam Ellipse	Warm White	19 mm	19 mm	Square	33.7 V	115 °	985 lm	14.5 mm	80	Flat
CreeLED, Inc. CMT1930-0000-000N0B0A57E	68 lm/W	500 mA	85 °C	Chip On Board (COB)	1.45 mm	800 mA	5700 K	5-Step MacAdam Ellipse	Cool White	19 mm	19 mm	Square	33.7 V	115 °	1159 lm	14.5 mm	70	Flat
CreeLED, Inc. CMT1930-0000-000N0H0A40G	61 lm/W	500 mA	85 °C	Chip On Board (COB)	1.45 mm	800 mA	4000 K	3-Step MacAdam Ellipse	Neutral White	19 mm	19 mm	Square	33.7 V	115 °	1040 lm	14.5 mm	80	Flat
CreeLED, Inc. CMT1930-0000-000N0U0A35H	51 lm/W	500 mA	85 °C	Chip On Board (COB)	1.45 mm	800 mA	3500 K	2-Step MacAdam Ellipse	Warm White	19 mm	19 mm	Square	33.7 V	115 °	871 lm	14.5 mm	90	Flat
CreeLED, Inc. CMT1930-0000-000N0H0A35H	60 lm/W	500 mA	85 °C	Chip On Board (COB)	1.45 mm	800 mA	2700 K	2-Step MacAdam Ellipse	Cool White	19 mm	19 mm	Square	33.7 V	115 °	1014 lm	14.5 mm	80	Flat
