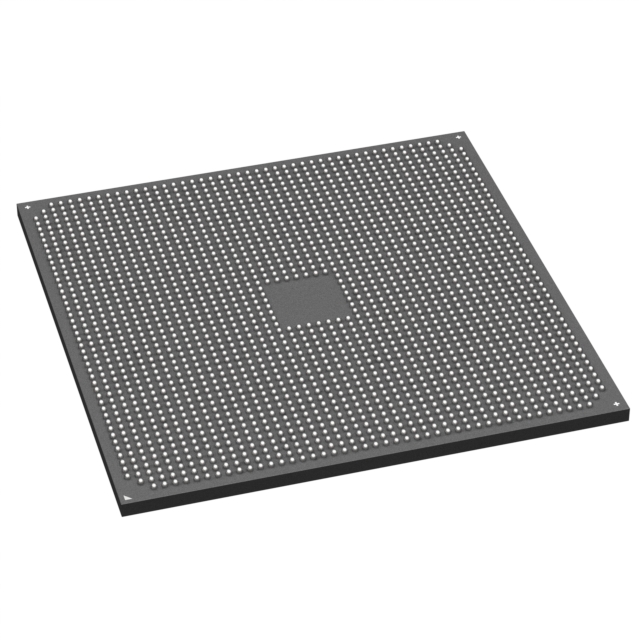

XCVM1502-1MSIVSVA2197
ActiveAMD / Xilinx
IC VERSALPRIME ACAP FPGA 2197BGA
XCVM1502-1MSIVSVA2197
ActiveAMD / Xilinx
IC VERSALPRIME ACAP FPGA 2197BGA
Description
General part information
XCVM1502-1MSIVSVA2197
Dual ARM® Cortex®-A72 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5F with CoreSight™ System On Chip (SOC) IC Versal™ Prime Versal™ Prime FPGA, 1M Logic Cells 600MHz, 1.3GHz 2197-FCBGA (45x45)
Technical Specifications
Parameters and characteristics for this part
| Specification | XCVM1502-1MSIVSVA2197 |
|---|---|
| Architecture | MPU, FPGA |
| Connectivity | USART, SD, USB OTG, CANbus, MMC, EBI, UART, Ethernet, SPI, I2C, SDIO, EMI |
| Core Processor | Dual ARM® Cortex®-A72 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5F with CoreSight™ |
| Number of I/O | 608 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2197-BFBGA, FCBGA |
| Package Length | 45 mm |
| Package Name | 2197-FCBGA |
| Package Width | 45 mm |
| Peripherals | DDR, DMA, PCIe |
| Primary Attributes | Versal™ Prime FPGA, 1M Logic Cells |
| RAM Size | 256 KB |
| Speed | 1.3 GHz, 600 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
