9007AO36
ActiveSCHNEIDER ELECTRIC

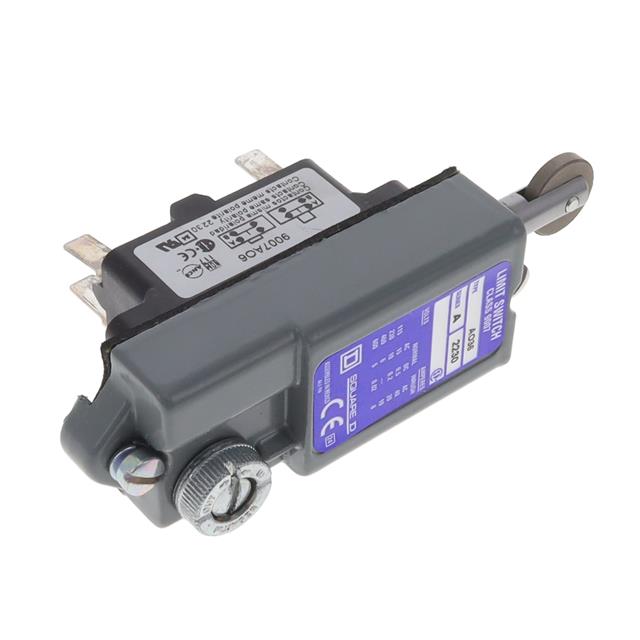

SWITCH LIMIT SPDT 15A 120V
9007AO36
ActiveSCHNEIDER ELECTRIC
SWITCH LIMIT SPDT 15A 120V
Description
General part information
9007AO36
Switch SPDT (DB/DM) Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 9007AO36 |
|---|---|
| Actuator Type | Roller Plunger |
| Circuit | SPDT (DB/DM) |
| Current Rating | 15 A, 250 mA |
| Ingress Protection | IP20 |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -18 °C |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
