Wakefield Thermal Solutions

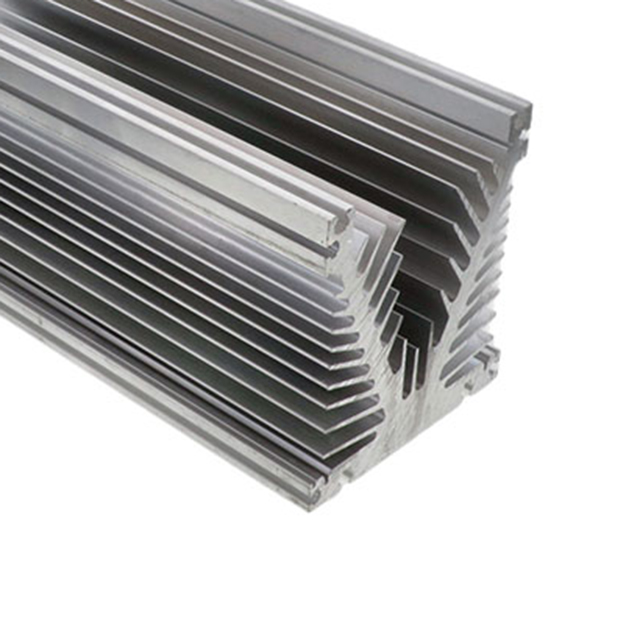

4.921" WIDE X 36" POWER MODULE EXTRUSION 13698 XX5658 ROHS COMPLIANT: YES

Find alt
125557

125557

Active
Wakefield Thermal Solutions

4.921" WIDE X 36" POWER MODULE EXTRUSION 13698 XX5658 ROHS COMPLIANT: YES

Find alt

Description

General part information

125557

Heat Sink Power Modules Aluminum Board Level, Extrusion

Technical Specifications

Parameters and characteristics for this part

Specification125557
Attachment MethodPress Fit
Fin Height4.528 in
Length36 in
MaterialAluminum
Package CooledPower Modules
ShapeFins, Rectangular
Thermal Resistance0.2 °C/W
TypeBoard Level, Extrusion
Width4.921 in
