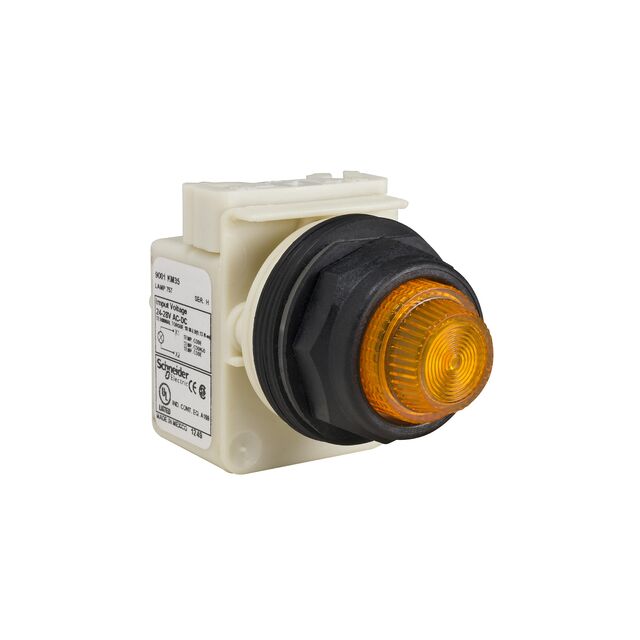

9001SKP35LYA31
ActiveSCHNEIDER ELECTRIC
PILOT LIGHT 28V 30MM SK +OPTIONS
9001SKP35LYA31
ActiveSCHNEIDER ELECTRIC
PILOT LIGHT 28V 30MM SK +OPTIONS
Description
General part information
9001SKP35LYA31
LED Panel Indicator Yellow Fresnel 24V ~ 28V Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001SKP35LYA31 |
|---|---|
| Ingress Protection | 1, 3, IP66, 12, 4, 4X, 2, NEMA 3R, 13 |
| Lamp Color | Yellow |
| Lens Color | Amber |
| Lens Diameter | 30 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Fresnel |
| Panel Cutout Dimension | 1.18 " |
| Panel Cutout Shape | Round |
| Ratings | AC, DC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage (Max) | 28 V |
| Voltage (Min) | 24 V |
