1-2842504-4

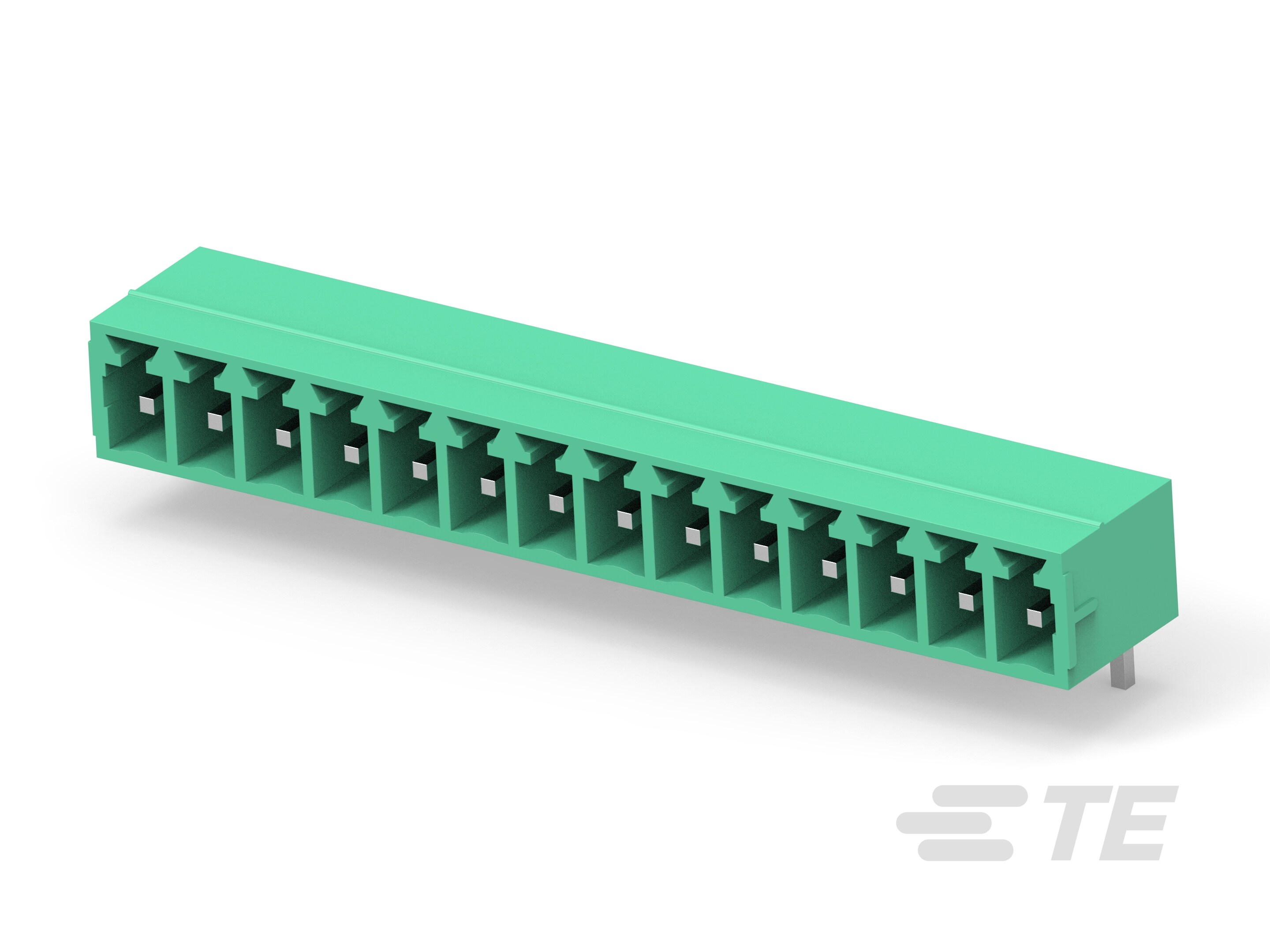

14 Position PCB Terminal Block, Header, Wire-to-Board, 3.81 mm [.15 in] Centerline, 1 Row, 300 VAC, Printed Circuit Board, Horizontal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2842504-4 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 8 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 14 |
| Operating Temperature (Max) | 115 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.15 in |
| Positions Per Level | 14 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 300 V |
