Description

General part information

OC69421-FNF

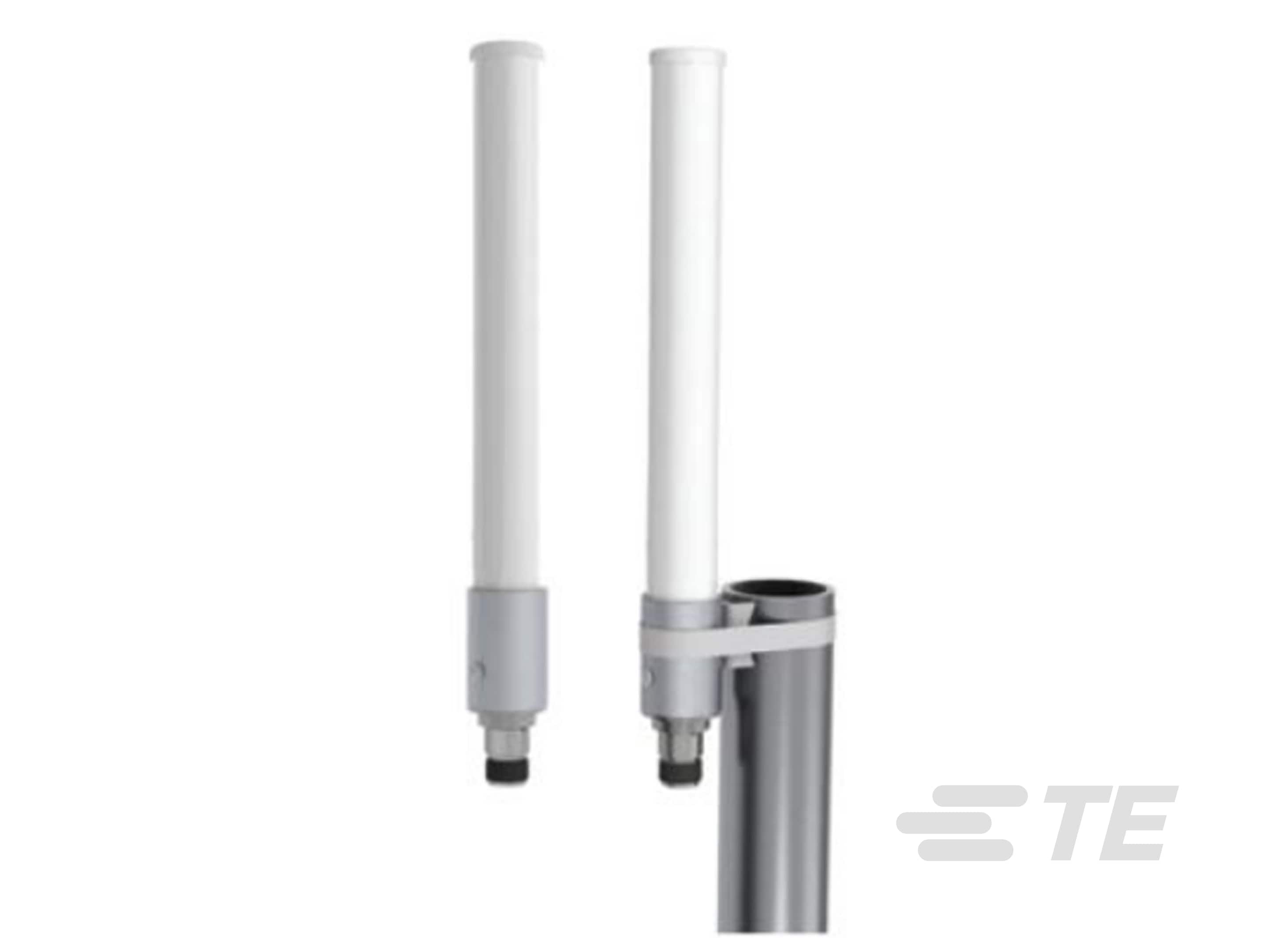

Baton/Stick Antenna, Multi Band, Cellular, External Mount, Pole/Mast/Bracket Mount, N-type, Omnidirectional, Single Port, OC Series

Technical Specifications

Parameters and characteristics for this part

SpecificationOC69421-FNF
Antenna TypeStraight, Whip
ApplicationsCBRS, 5G, 4G
Frequency (Center/Band)829MHz, 2.595GHz, 3.75GHz, 2.045GHz, 2.3GHz, 1.85GHz
Frequency (Center/Band) - 1829 MHz
Frequency (Center/Band) - 21.85 GHz
Frequency (Center/Band) - 32.045 GHz
Frequency (Center/Band) - 42.3 GHz
Frequency (Center/Band) - 52.595 GHz
Frequency (Center/Band) - 63.75 GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum960 MHz
Frequency Range (Band 1) Minimum698 MHz
Frequency Range (Band 2) Maximum1.99 GHz
Frequency Range (Band 2) Minimum1.71 GHz
Frequency Range (Band 3) Maximum2.17 GHz
Frequency Range (Band 3) Minimum1.92 GHz
Frequency Range (Band 4) Maximum2.5 GHz
Frequency Range (Band 4) Minimum2.1 GHz
Frequency Range (Band 5) Maximum2.69 GHz
Frequency Range (Band 5) Minimum2.5 GHz
Frequency Range (Band 6) Maximum4.2 GHz
Frequency Range (Band 6) Minimum3.3 GHz
Gain3.5 dBi, 5 dBi, 1.5 dBi
Height (Max)9.764 in
Mounting TypeBracket Mount
Number of Bands6
Power - Max20 W
RF Family/StandardCellular
TerminationN Type Female
VSWR2.5, 2
VSWR Maximum2.5
VSWR Minimum2
