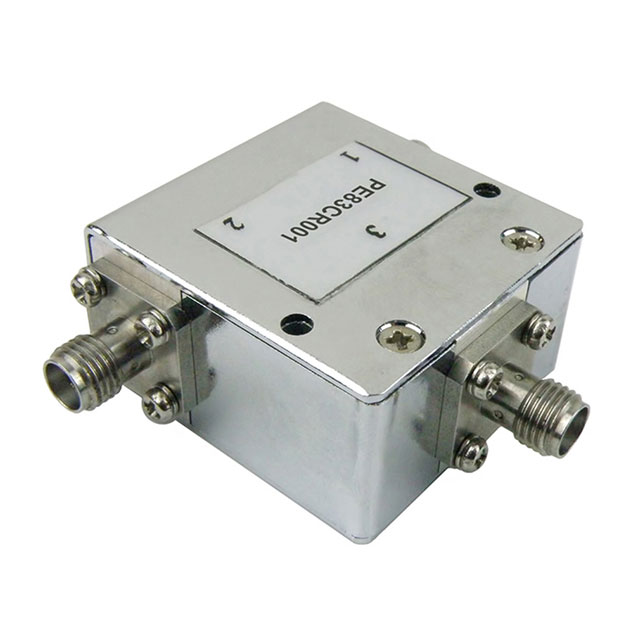

PE83CR001
ActivePasternack
CIR 700-800MHZ SMA 10W
PE83CR001
ActivePasternack
CIR 700-800MHZ SMA 10W
Description
General part information
PE83CR001
CIR 700-800MHZ SMA 10W
Technical Specifications
Parameters and characteristics for this part
| Specification | PE83CR001 |
|---|---|
| Connector Type | SMA-FEMALE |
| Frequency (Max) | 800 MHz |
| Frequency (Min) | 700 MHz |
| Insertion Loss | 0.5 dB |
| Isolation (Min) | 18 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| Type | Circulator |
| VSWR | 1.25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
