XUDA1NSML2
ActiveSCHNEIDER ELECTRIC

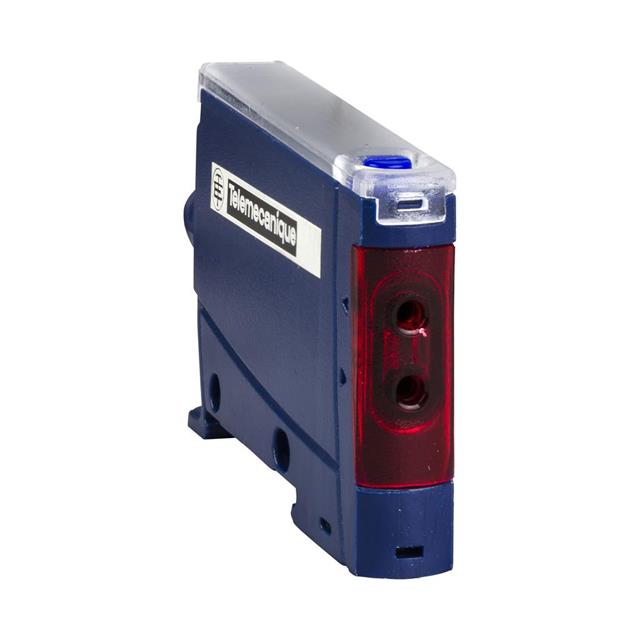

PHOTOELECTRIC SENSOR, NPN/SPST-NO/NC, CABLE, 24VDC, PBT, OSISENSE XU SERIES
XUDA1NSML2
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR, NPN/SPST-NO/NC, CABLE, 24VDC, PBT, OSISENSE XU SERIES
Description
General part information
XUDA1NSML2
Optical Sensor NPN-NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XUDA1NSML2 |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP65, IP64 |
| Light Source | Red LED, Yellow LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | NO, NPN-NC |
| Response Time | 500 µs |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
