925603-2

Active

TE Connectivity AMP Connectors

250 FASTIN-ON REC

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

250 FASTIN-ON REC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	925603-2	925603 Series

Contact Finish	Tin	Tin
Contact Material	Copper Alloy	Copper Alloy, Brass
Gender	Female	Female
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	3.3 mm	3.3 mm
Insulation Diameter [Max] [diameter]	0.13 "	0.13 "
Insulation Diameter [Min] [diameter]	0.091 in	0.091 in
Insulation Diameter [Min] [diameter]	2.31 mm	2.31 mm
Length - Overall [x]	0.756 in	0.756 in
Length - Overall [x]	19.2 mm	19.2 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Length	7.11 mm	7.11 - 7.8 mm
Tab Length	0.28 in	0.28 - 0.307 in
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	6.35 mm	6.35 mm
Tab Width	0.25 in	0.25 in
Terminal Type	Standard	Standard
Termination	Crimp	Crimp

250 FASTIN-ON REC

Part	Contact Finish	Mounting Type	Tab Thickness	Tab Thickness	Tab Length	Tab Length	Contact Material	Length - Overall [x]	Length - Overall [x]	Tab Width	Tab Width	Gender	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Termination	Terminal Type	Insulation
TE Connectivity AMP Connectors 925603-2	Tin	Free Hanging (In-Line)	0.032 in	0.81 mm	7.11 mm	0.28 in	Copper Alloy	0.756 in	19.2 mm	6.35 mm	0.25 in	Female	0.091 in	3.3 mm	2.31 mm	0.13 "	Crimp	Standard	Non-Insulated
TE Connectivity AMP Connectors 925603-4	Tin	Free Hanging (In-Line)	0.032 in	0.81 mm	7.8 mm	0.307 in	Brass	0.756 in	19.2 mm	6.35 mm	0.25 in	Female	0.091 in	3.3 mm	2.31 mm	0.13 "	Crimp	Standard	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

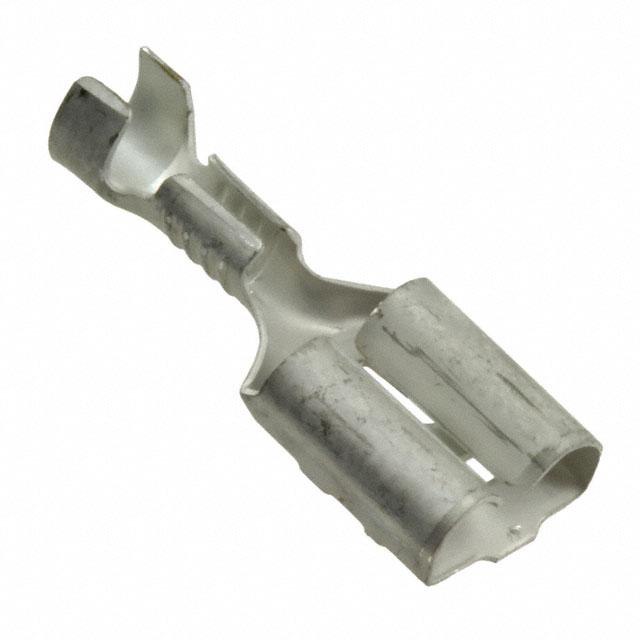

0.250" (6.35mm) Quick Connect Female Crimp Connector Non-Insulated
