Connectors, Interconnects

925603-2

Active

TE Connectivity Raychem Cable Protection

250 FASTIN-ON REC

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

250 FASTIN-ON REC

Technical Specifications

Parameters and characteristics for this part

Specification	925603-2

Contact Finish	Tin
Contact Material	Copper Alloy
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	3.3 mm
Insulation Diameter [Max] [diameter]	0.13 "
Insulation Diameter [Min] [diameter]	0.091 in
Insulation Diameter [Min] [diameter]	2.31 mm
Length - Overall [x]	0.756 in
Length - Overall [x]	19.2 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	7.11 mm
Tab Length	0.28 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp

Part	Contact Finish	Mounting Type	Tab Thickness	Tab Thickness	Tab Length	Tab Length	Contact Material	Length - Overall [x]	Length - Overall [x]	Tab Width	Tab Width	Gender	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Termination	Terminal Type	Insulation
TE Connectivity Raychem Cable Protection 925603-2	Tin	Free Hanging (In-Line)	0.032 in	0.81 mm	7.11 mm	0.28 in	Copper Alloy	0.756 in	19.2 mm	6.35 mm	0.25 in	Female	0.091 in	3.3 mm	2.31 mm	0.13 "	Crimp	Standard	Non-Insulated
TE Connectivity Raychem Cable Protection 925603-4	Tin	Free Hanging (In-Line)	0.032 in	0.81 mm	7.8 mm	0.307 in	Brass	0.756 in	19.2 mm	6.35 mm	0.25 in	Female	0.091 in	3.3 mm	2.31 mm	0.13 "	Crimp	Standard	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

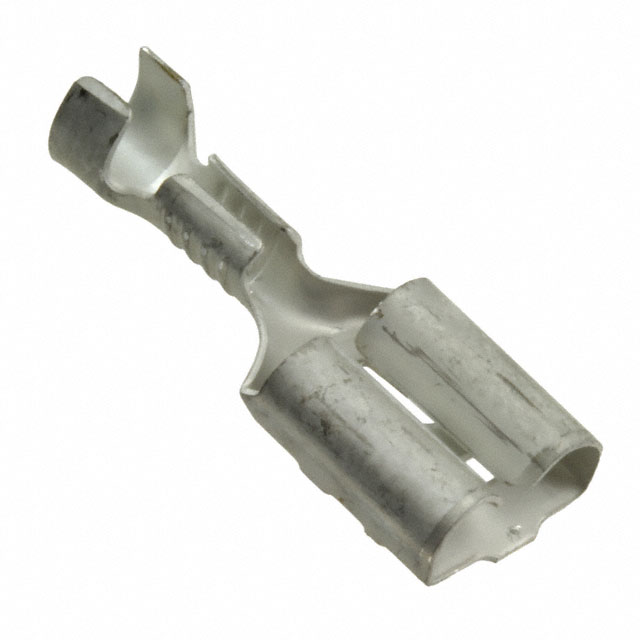

0.250" (6.35mm) Quick Connect Female Crimp Connector Non-Insulated
