2-31159-1
ActiveTE Connectivity AMP Connectors
DG R 22-16 COMM 22-18 MIL 6 ROHS COMPLIANT: YES
2-31159-1
ActiveTE Connectivity AMP Connectors
DG R 22-16 COMM 22-18 MIL 6 ROHS COMPLIANT: YES
Description
General part information
2-31159-1

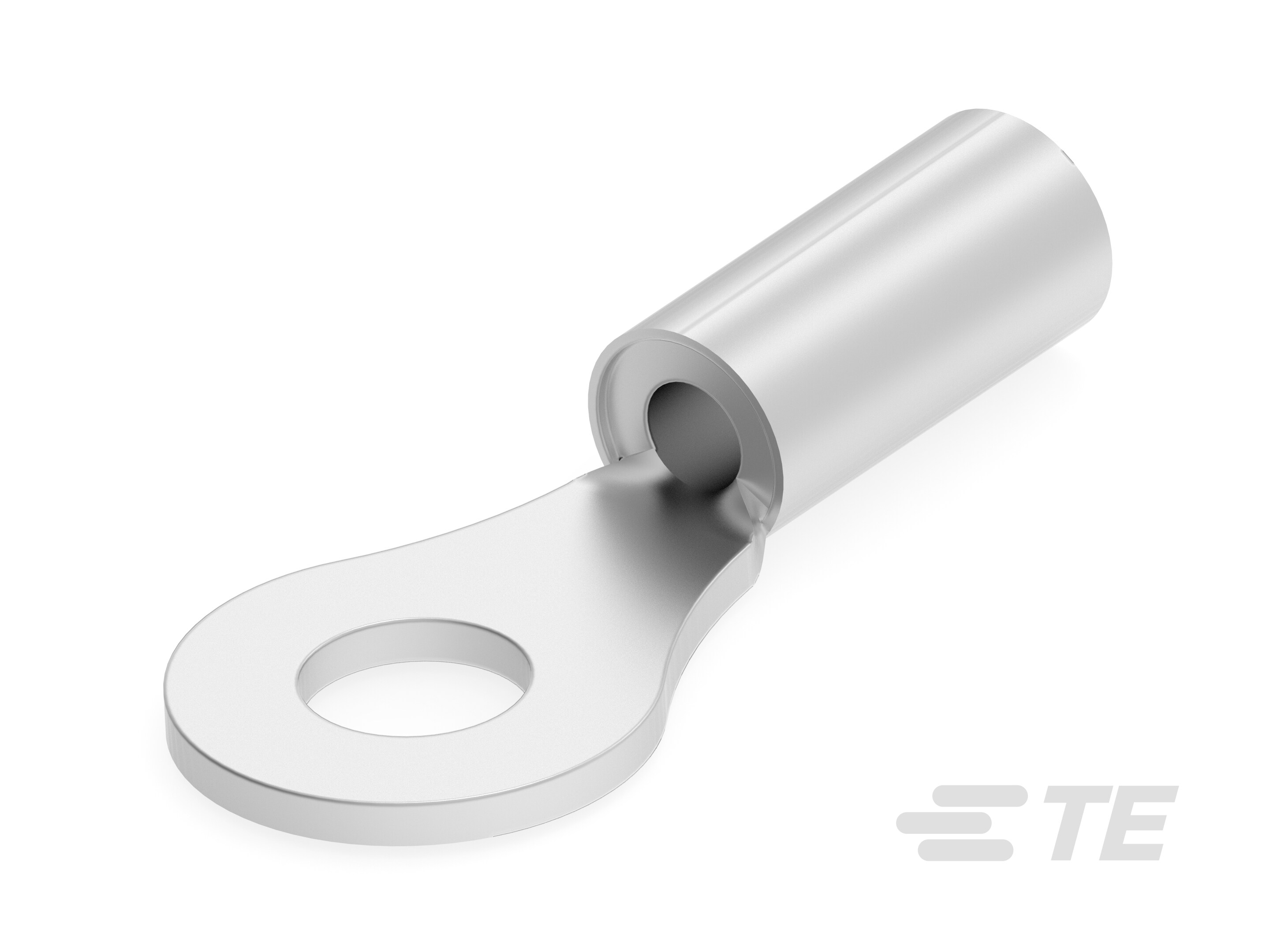

Closed Ring Tongue Terminal, 22 AWG, #6 / M3.5 Stud, 3.68 mm [.145 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-31159-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Non-Insulated |
| Length - Overall | 0.775 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.312 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
